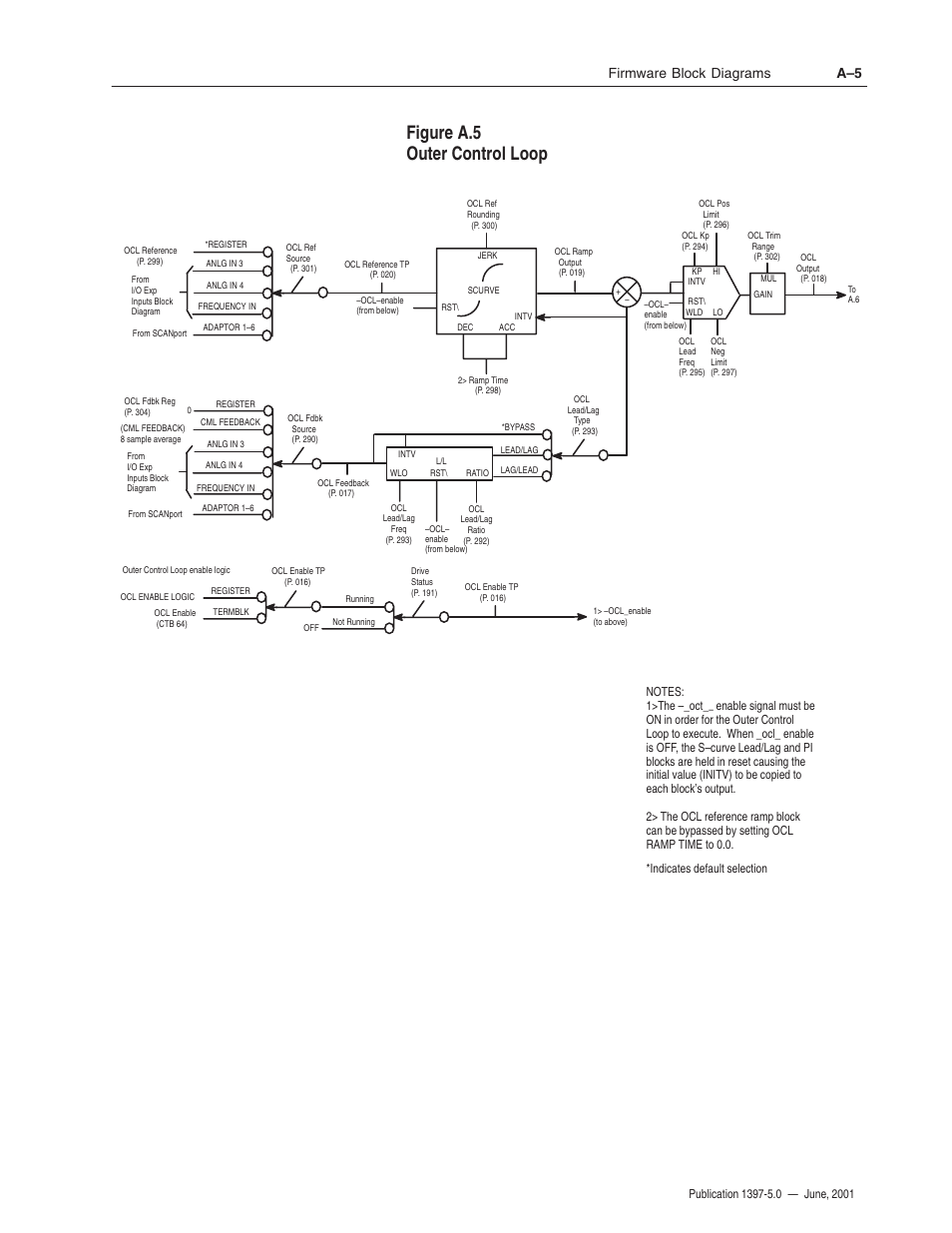

Figure a.5 outer control loop, Firmware block diagrams a–5 – Rockwell Automation 1397 DC Drive Firmware 2.xx User Manual
Page 223
