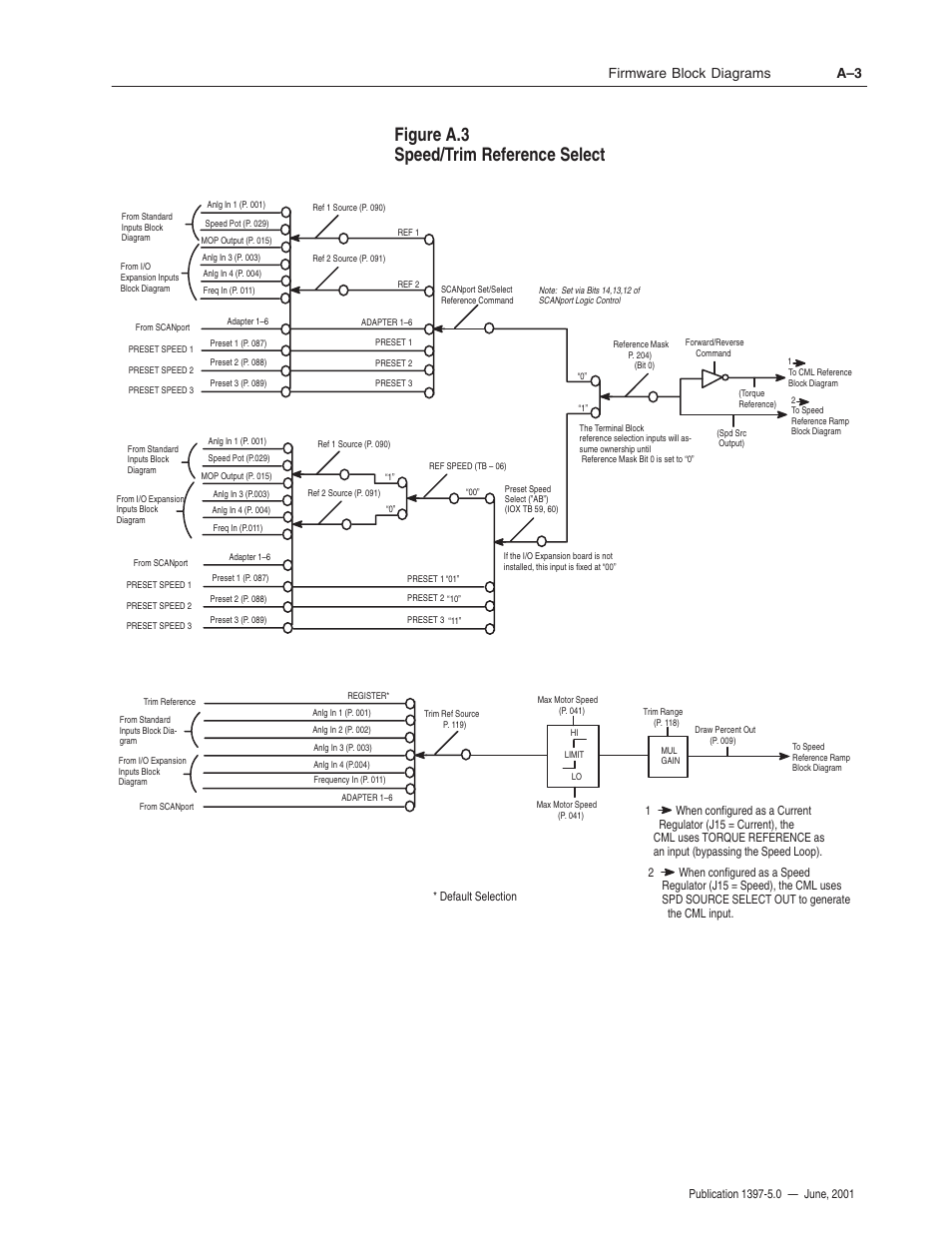

Figure a.3 speed/trim reference select, Firmware block diagrams a–3 – Rockwell Automation 1397 DC Drive Firmware 2.xx User Manual
