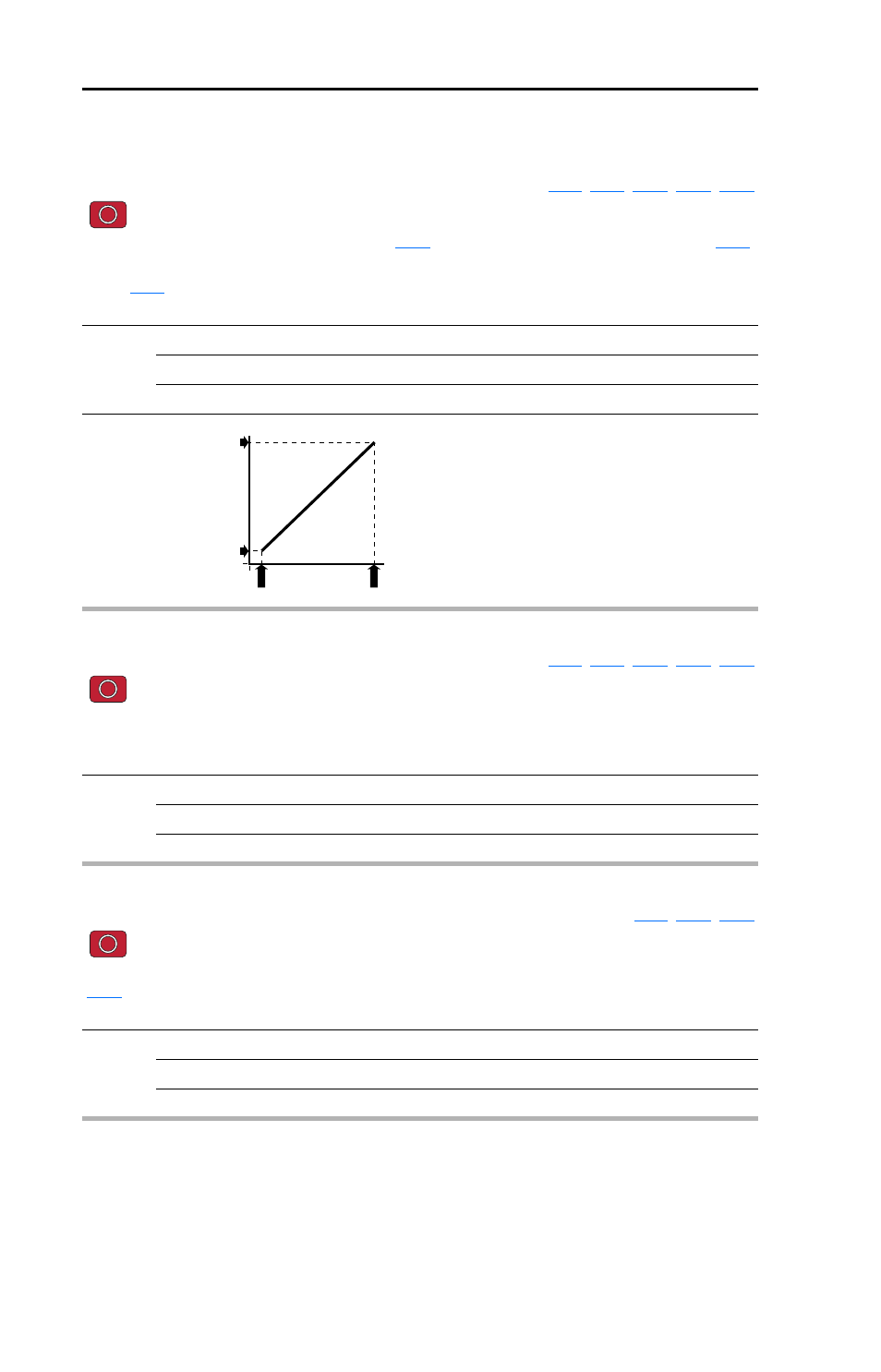

3-36 Programming and Parameters
Advanced Program Group (continued)
A110 [Anlg In 0-10V Lo]
Related Parameter(s): b020 , P034 , P038 , A122 , A123
Stop drive before changing this parameter.
Sets the analog input level that corresponds to P034 [Minimum Freq] if a 0-10V input is used by P038
[Speed Reference].
When
A123 [10V Bipolar Enbl] is set to 1 “Bi-Polar In” this parameter is ignored.
Analog inversion can be accomplished by setting this value larger than A111 [Anlg In 0-10V Hi].
Values Default: 0.0%
Min/Max: 0.0/100.0%
Display: 0.1%
0
P035 [Maximum Freq]
P034 [Minimum Freq]
A110 [Anlg In 0-10V Lo] A111 [Anlg In 0-10V Hi]
0
Speed Reference
A111 [Anlg In 0-10V Hi]
Related Parameter(s): b020 , P035 , P038 , A122 , A123
Stop drive before changing this parameter.
Sets the analog input level that corresponds to P035 [Maximum Freq] if a 0-10V input is used by P038
[Speed Reference].
Analog inversion can be accomplished by setting this value smaller than A110 [Anlg In 0-10V Lo].
Values Default: 100.0%
Min/Max: 0.0/100.0%
Display: 0.1%
A112 [Anlg In4-20mA Lo]
Related Parameter(s): b021 , P034 , P038
Stop drive before changing this parameter.
Sets the analog input level that corresponds to P034 [Minimum Freq] if a 4-20mA input is used by
P038 [Speed Reference].
Analog inversion can be accomplished by setting this value larger than A113 [Anlg In4-20mA Hi].
Values Default: 0.0%
Min/Max: 0.0/100.0%
Display: 0.1%
