1-28 Installation/Wiring
Accel/Decel Selection
The Accel/Decel rate can be obtained by a variety of methods. The
default rate is determined by P039 [Accel Time 1] and P040 [Decel Time
1]. Alternative Accel/Decel rates can be made through digital inputs,

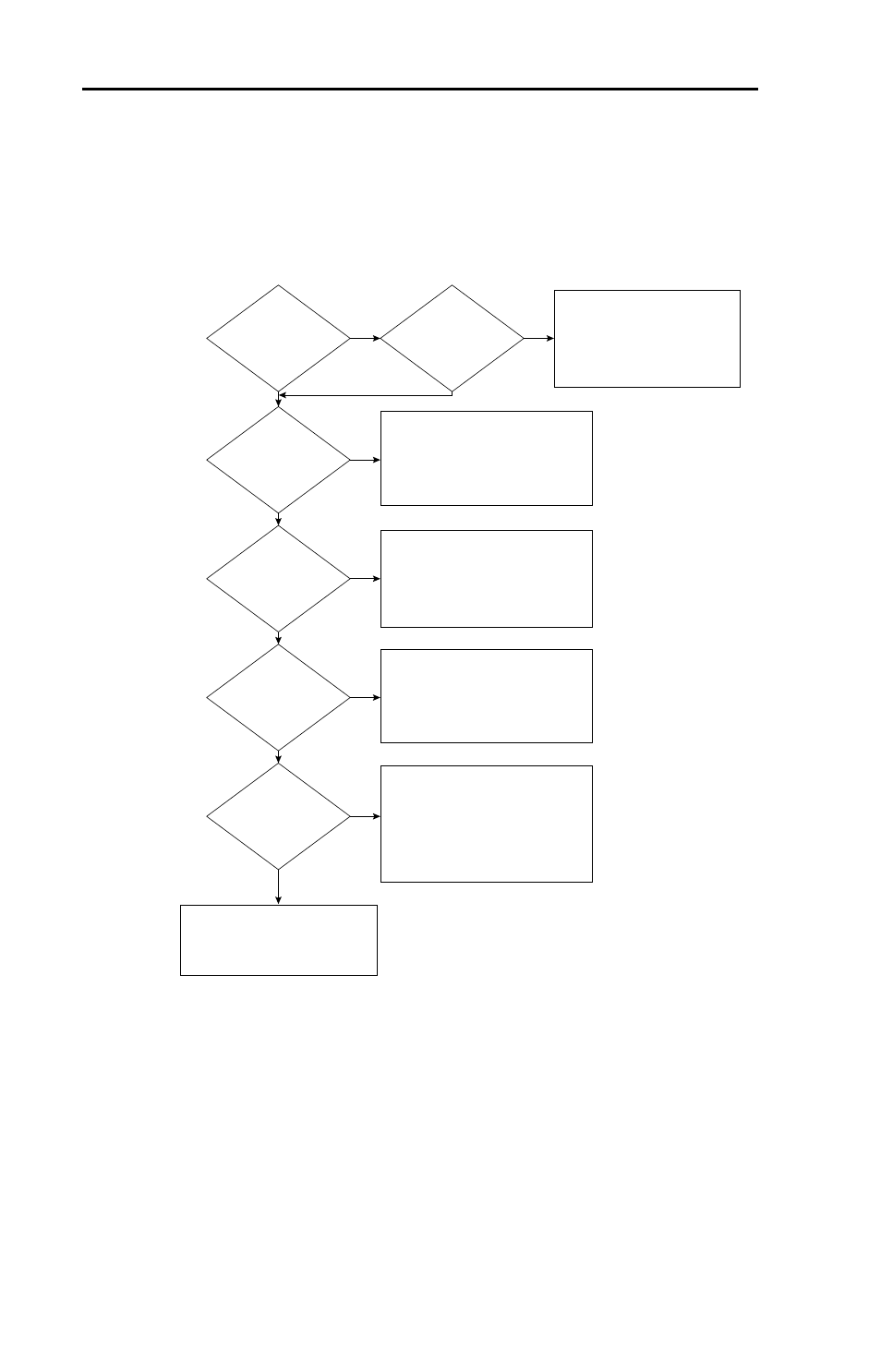

RS485 (DSI) communications and/or parameters. See the chart below
for the override priority.
No
Yes
No
RS485 (DSI) Port
Controls Speed
No
Yes
Drive Stopped
(Not Running)
Yes
Either
P039 [Accel Time 1]/P040 [Decel Time 1]
or
A067 [Accel Time 2]/A068 [Decel Time 2]
can be selected when
RS485 (DSI) port is active.
Input is programmed
as "Accel 2 & Decel 2"
A051, A052, A053
or A054 = 1
No
Yes
P039 [Accel Time 1]/P040 [Decel Time 1]
or
A067 [Accel Time 2]/A068 [Decel Time 2]
is active when input is active.
Speed is controlled
by [Preset Freq x]
No
Yes
P039 [Accel Time 1]/P040 [Decel Time 1];
A067 [Accel Time 2]/A068 [Decel Time 2]
determined by the active
Preset Frequency.
See A070-A077 [Preset Freq 0-7]
Either
P039 [Accel Time 1]/P040 [Decel Time 1]
or
A067 [Accel Time 2]/A068 [Decel Time 2]
can be selected by:
Step Logic parameters A140-A147
or
Position Logic parameters E230-E245
Speed is controlled
by Stp Logic or
Pos Logic
No
Yes
P039 [Accel Time 1]/P040 [Decel Time 1]
are used.
Drive will Start and Run
at Jog Speed.
Drive will use A079 [Jog Accel/Decel]
Direction comes from
I/O Terminal 03 Dir/Run REV
Jog Input
Enabled and Active:
A051, A052, A053
or A054 = 2, 11,12
