Rockwell Automation 22D PowerFlex 40P User Manual, FRN 3 - Manual (Page 141)

Accessories and Dimensions B-11

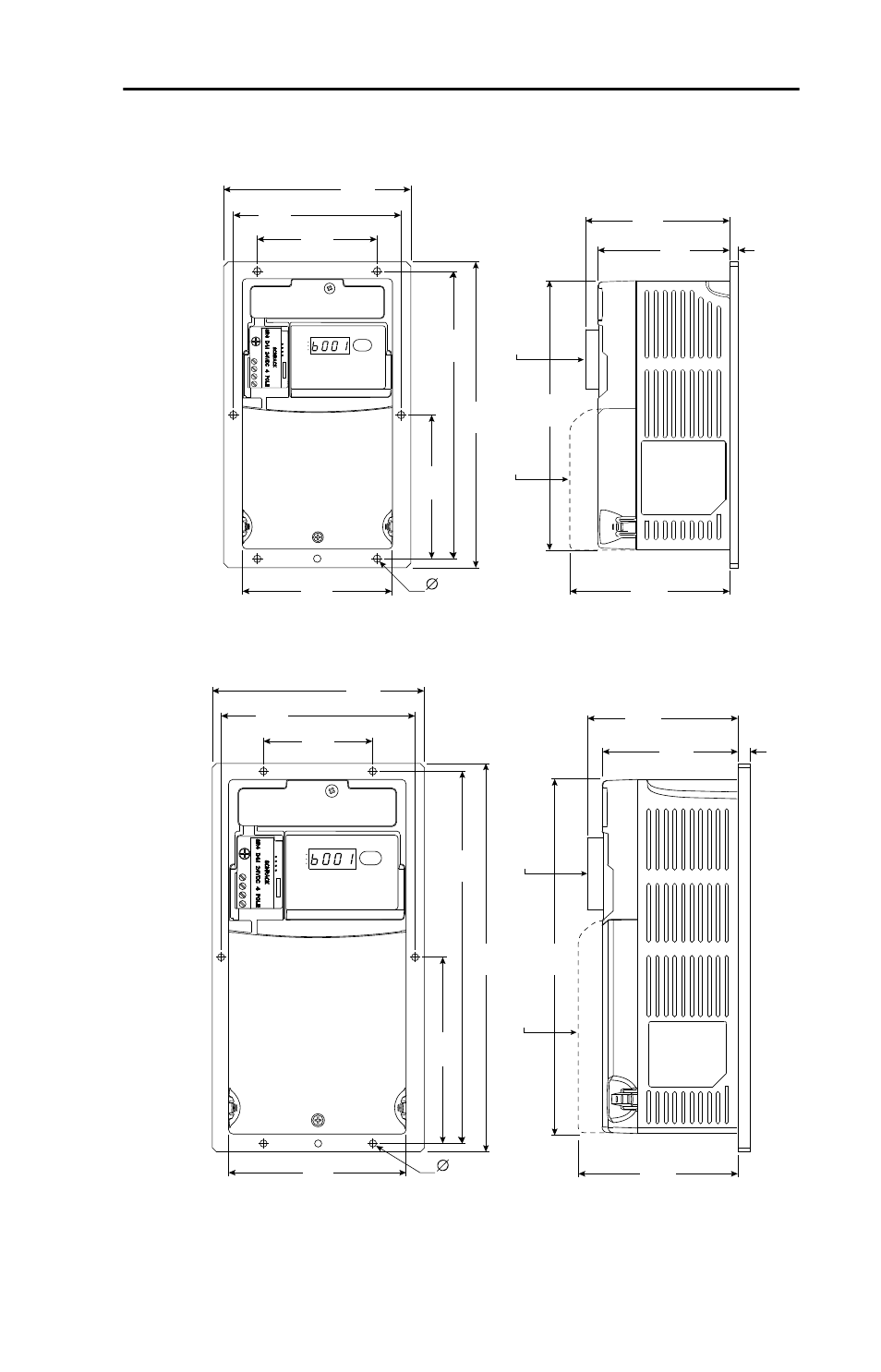

Figure B.5 PowerFlex 40P Plate Drive Dimensions – Dimensions are in millimeters
and (inches)
125
(4.92)
204
(8.03)
180
(7.09)
192
(7.56)
96
(3.78)
9.5
(0.37)
88
(3.46)
100
(3.94)
112
(4.41)
100
(3.94)
80
(3.15)
5.3
(0.21)
RUN
REV
FAULT
RUN
REV
FAULT
20A-DG01
113
(4.45)
22D-CCB
155
(6.10)
284
(11.18)
260
(10.24)
272
(10.71)
136
(5.35)
9.5
(0.37)
98.5
(3.88)
110.5
(4.35)
123.5
(4.86)
142
(5.59)
130
(5.12)
80
(3.15)
5.3
(0.21)
RUN
REV
FAULT
RUN
REV
FAULT
20A-DG01
22D-CCC
Frame B
Frame C
