Accessories and Dimensions B-15

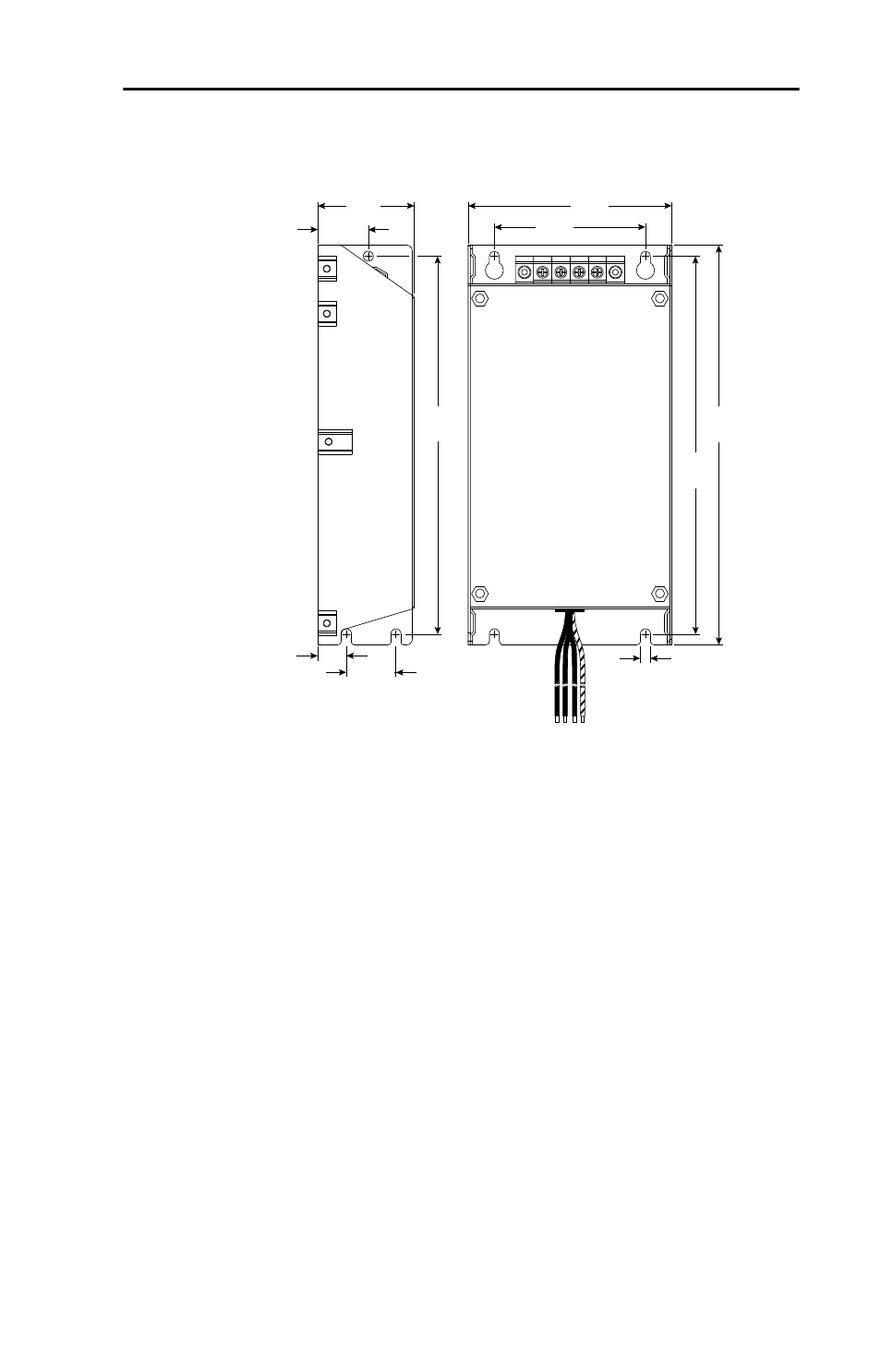

Figure B.10 Frame C EMC Line Filters – Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF018-CS, -CL; 22-RF025-CL; 22-RF026-CS, -CL; 22-RF034-CS,
-CL
5.5 (0.22)
17
(0.67) 30
(1.18)
90
(3.54)
130
(5.12)
60
(2.36)
32
(1.26)
309
(12.17)
297
(11.69)
297
(11.69)
