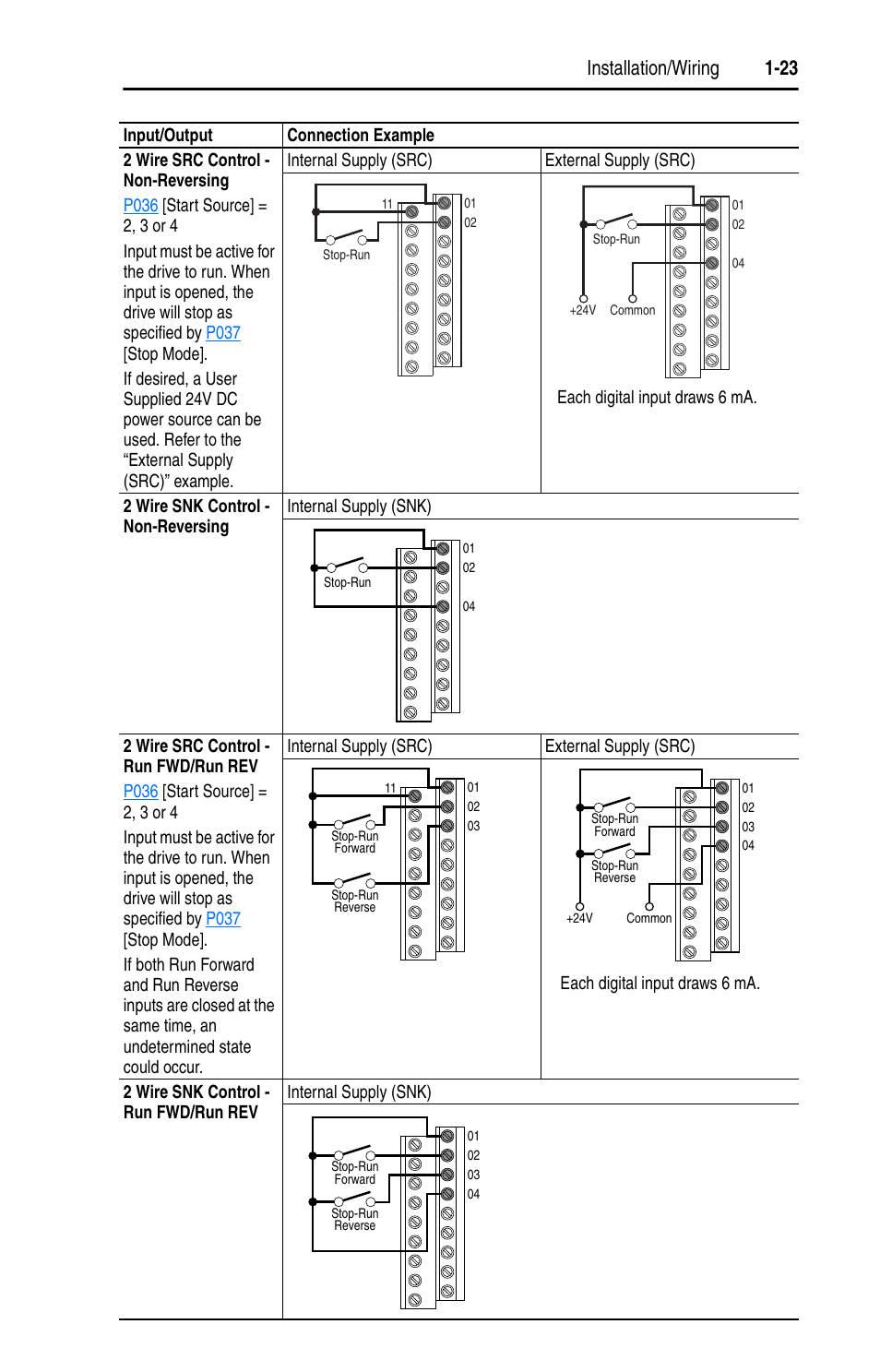

Installation/wiring 1-23 – Rockwell Automation 22D PowerFlex 40P User Manual, FRN 3 User Manual
Page 33
