Signal and control wire types, I/o terminal block, Maximum control wire recommendations – Rockwell Automation 22D PowerFlex 40P User Manual, FRN 3 User Manual

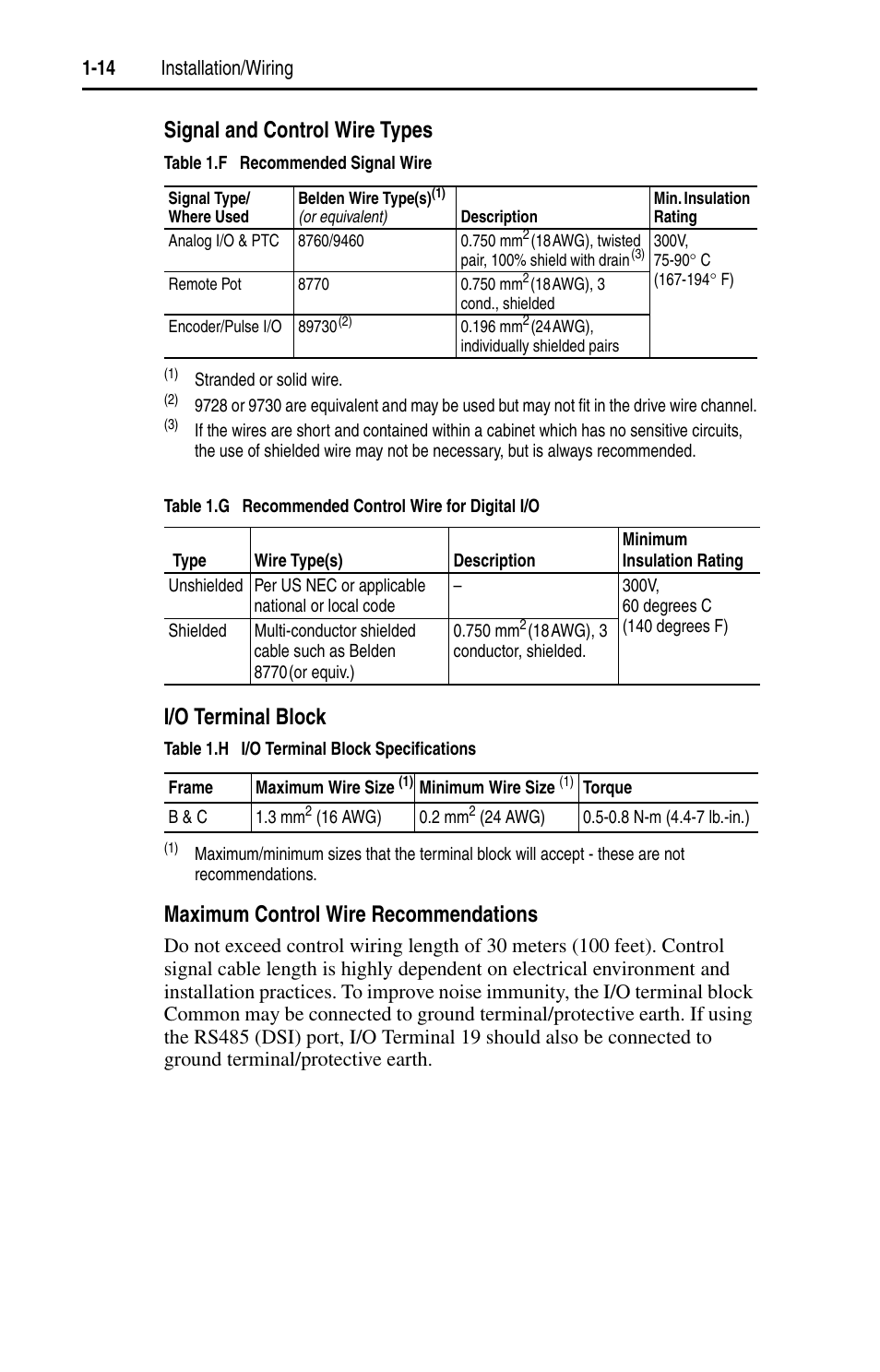

Page 24: 14 installation/wiring
