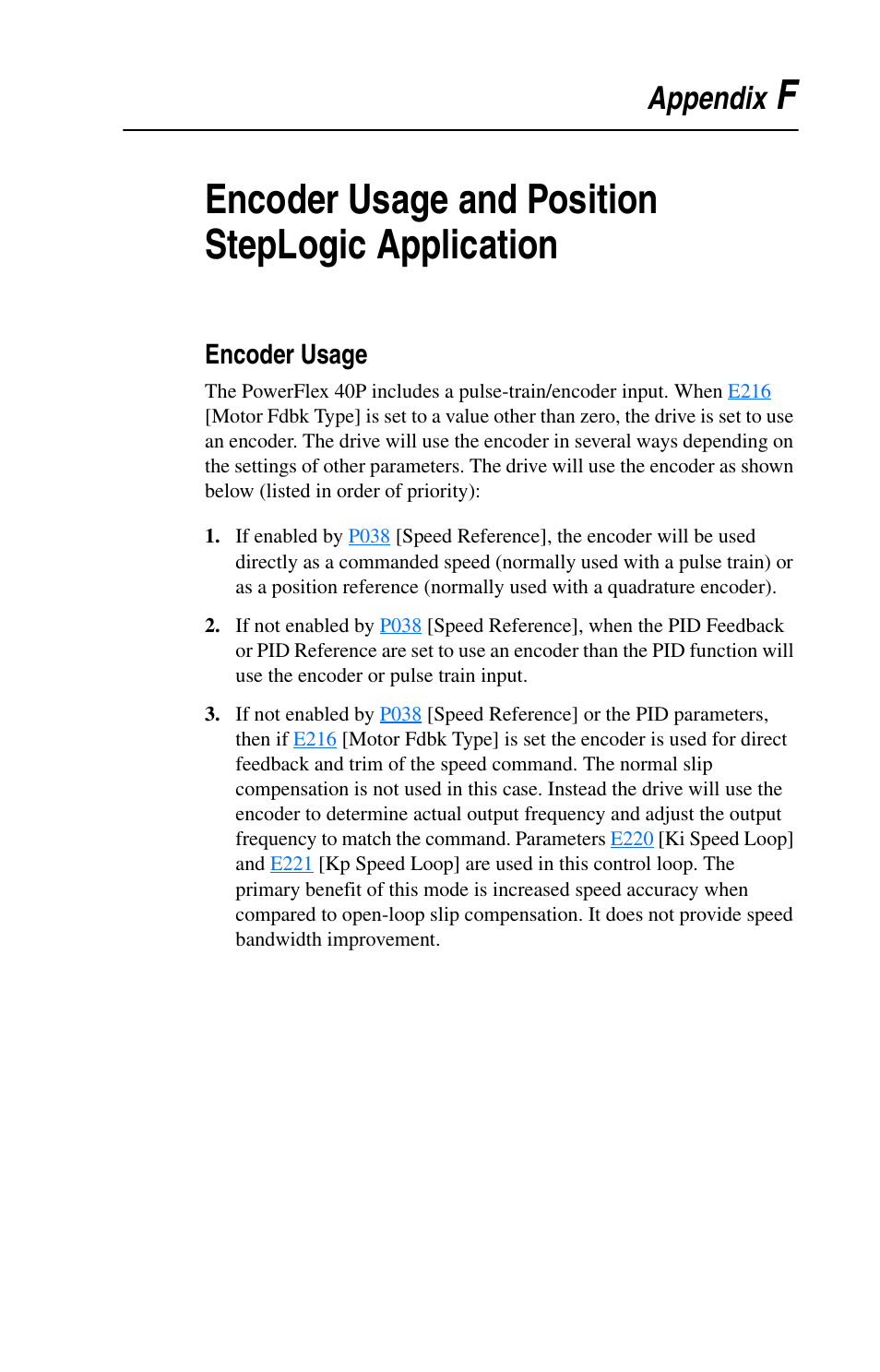

Appendix f, Encoder usage and position steplogic application, Encoder usage – Rockwell Automation 22D PowerFlex 40P User Manual, FRN 3 User Manual
Page 169: R to, Fencoder usage and position steplogic application, Appendix
