GDS-200 & GDS-300 Series User Manual

92

5. Select an automatic measurement from the

selected category.

Tip: Tapping the bottom of the selection
window will display the next group of
automatic measurements for the category.

6. To select the source for the selected automatic

measurement, long-press the measurement
selection. Select the source from the submenu
that appears.

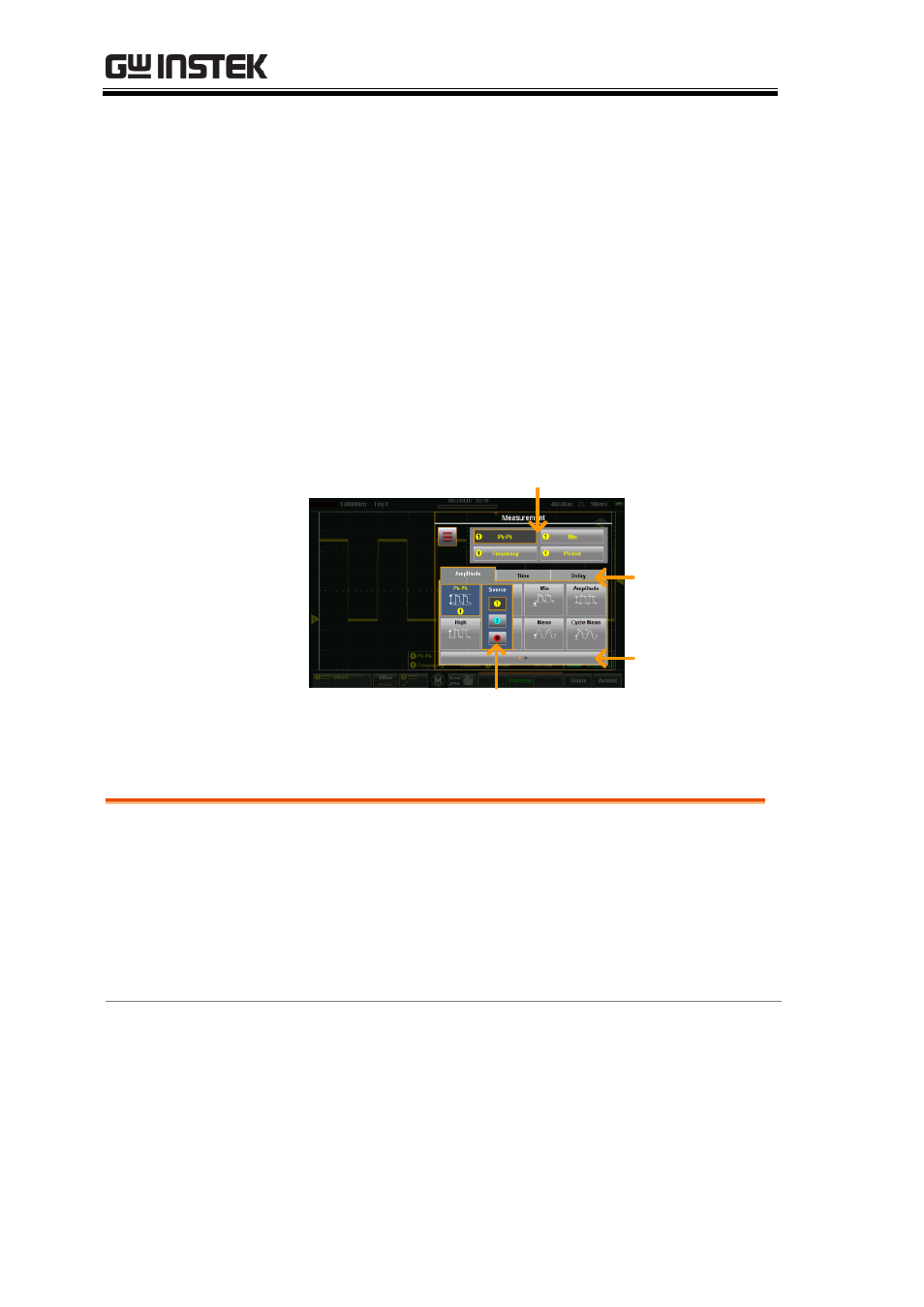

Source

Measurement

selection

Measurement slots

Measurement

categories

Next

measurement

group

Automatic Measurement Options

Background

The Option menu will limit the bounds of the
automatic measurements to the entire record
length, to the screen graticule or to the onscreen
cursors. For measurement statistics, the mean
number of samples can also be set. The default
number of samples is set to 2.

Steps

1. Access the Measurement menu.

Page 90
