Set the Vertical Position of the Selected Waveform
Background The touch screen can be used to conveniently set
the vertical position of the selected waveform.
Steps Swipe the screen vertically to set the vertical
position of the selected waveform.
The vertical position will also be shown in a popup
window.
The waveform will automatically snap to the zero
position at each crossing. To move past the zero
position, use the swipe gesture again.
Tapping the upper or lower part of the screen will
also increase/decrease the vertical position.

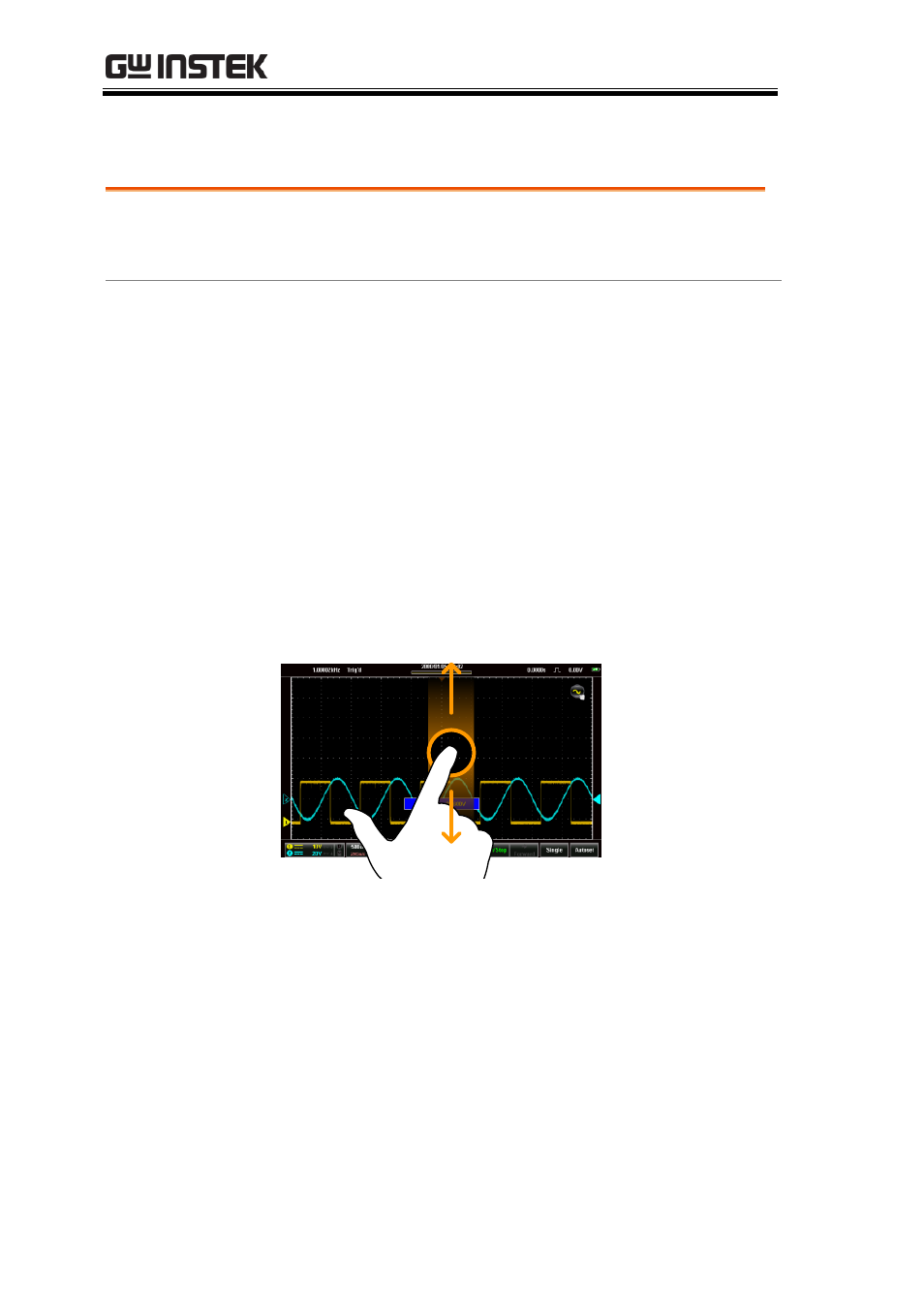

Example
