OPERATION

153

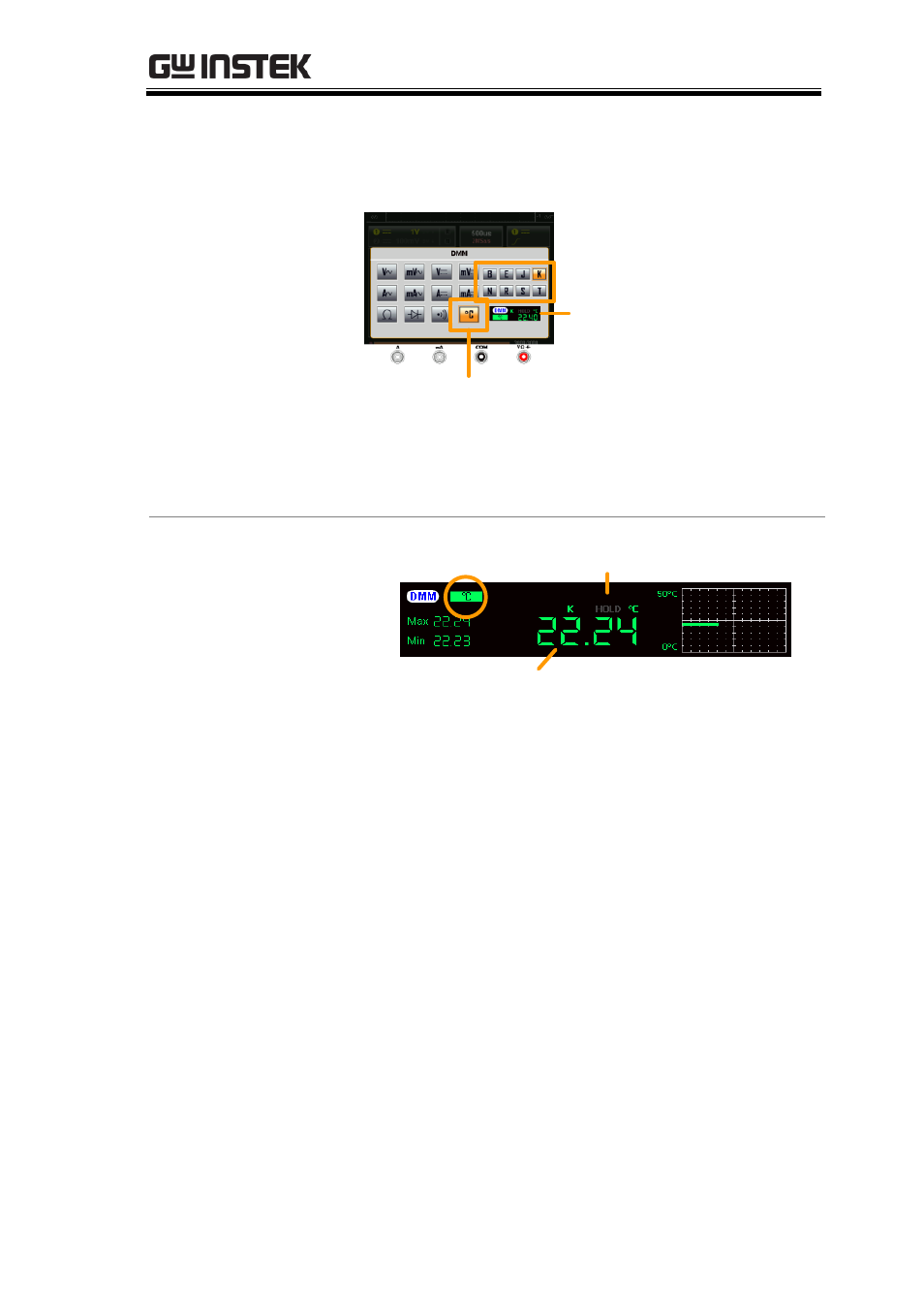

3. The selected mode will be previewed in the

lower corner.

Temperature key/toggle

temperature unit

Multimeter

settings

Preview screen

Thermocouple type

4. Press anywhere outside of the multimeter

settings area to return to the main display.

Example

Temperature measurement

DMM mode

Max

Min

Hold on/off

Trend plot

(vertical view only)
