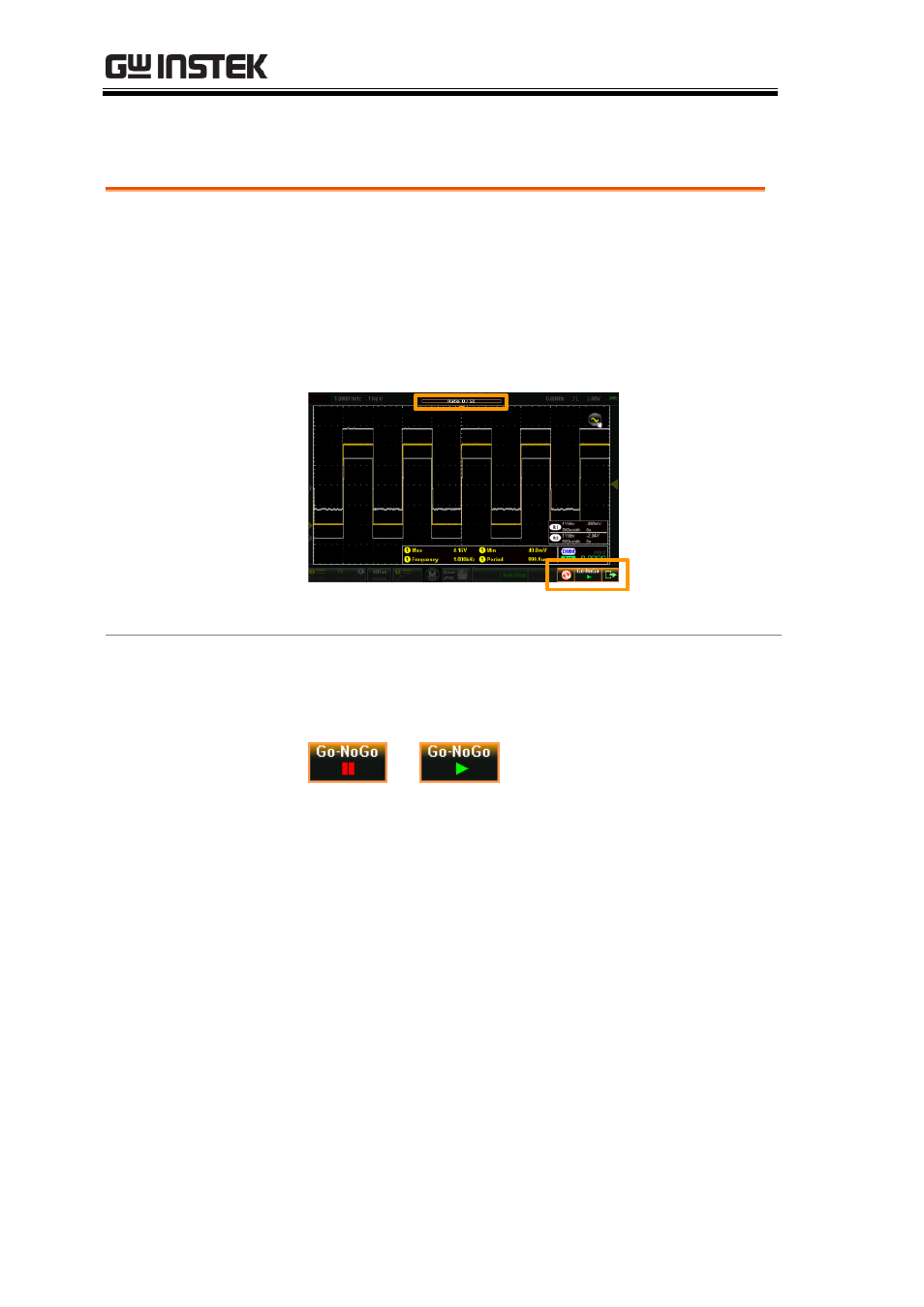

GDS-200 & GDS-300 Series User Manual

122

Running a Go-NoGo Test

Background

The Go-NoGo controls are located at the
bottom left-hand corner of the screen. The
Fail/Total ratio (Violations/Number of Tests) is
shown in the title bar.

Fail/Total ratio

Go-NoGo controls

Run Go-NoGo
Test

1. Toggle the Go-NoGo button from pause to

play.

The test will run continuously until the test is
stopped.

Pressing the Go-NoGo button again will stop
the test and toggle the button back to pause.

If the Violating setting was set to Stop or Stop
Beep, press the Go-NoGo button again to
restart the test after it has stopped.
