OPERATION

43

Set the Vertical Scale of the Selected Waveform

Background

The touch screen can be used to conveniently set
the vertical scale of the selected waveform. To set
other vertical scale options, see from page 53

Steps

Pinch in/out vertically to set the vertical scale of
the selected waveform.

A scale indicator will popup to show the current
scale in relation to full vertical scale range.

When the scale indicator appears, simply tapping
the upper or lower half of the screen will also
change the vertical scale.

The vertical scale (as a value) is shown in the
bottom left-hand side of the display.

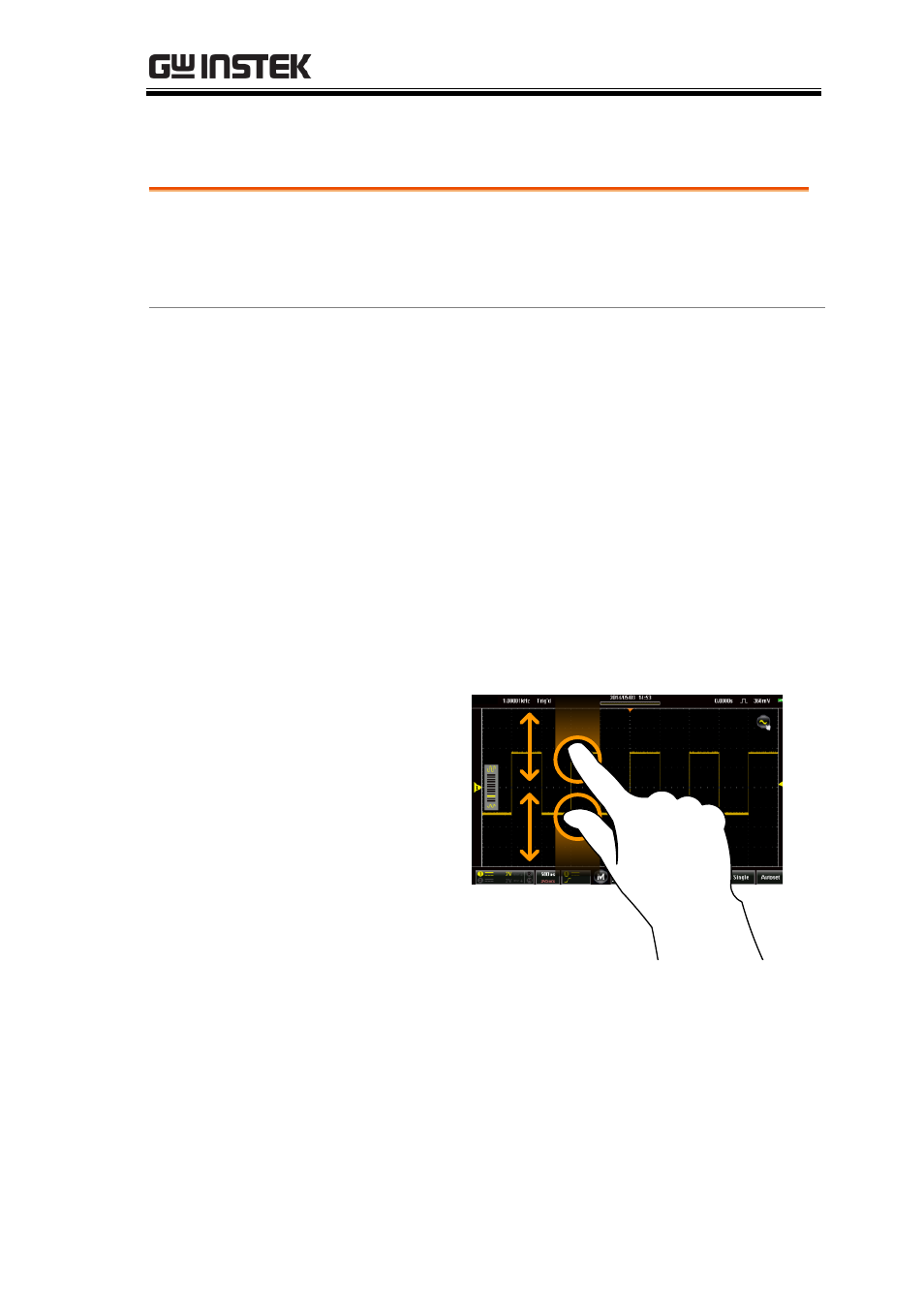

Example

Scale Indicator

Vertical Scale
