GDS-200 & GDS-300 Series User Manual
148

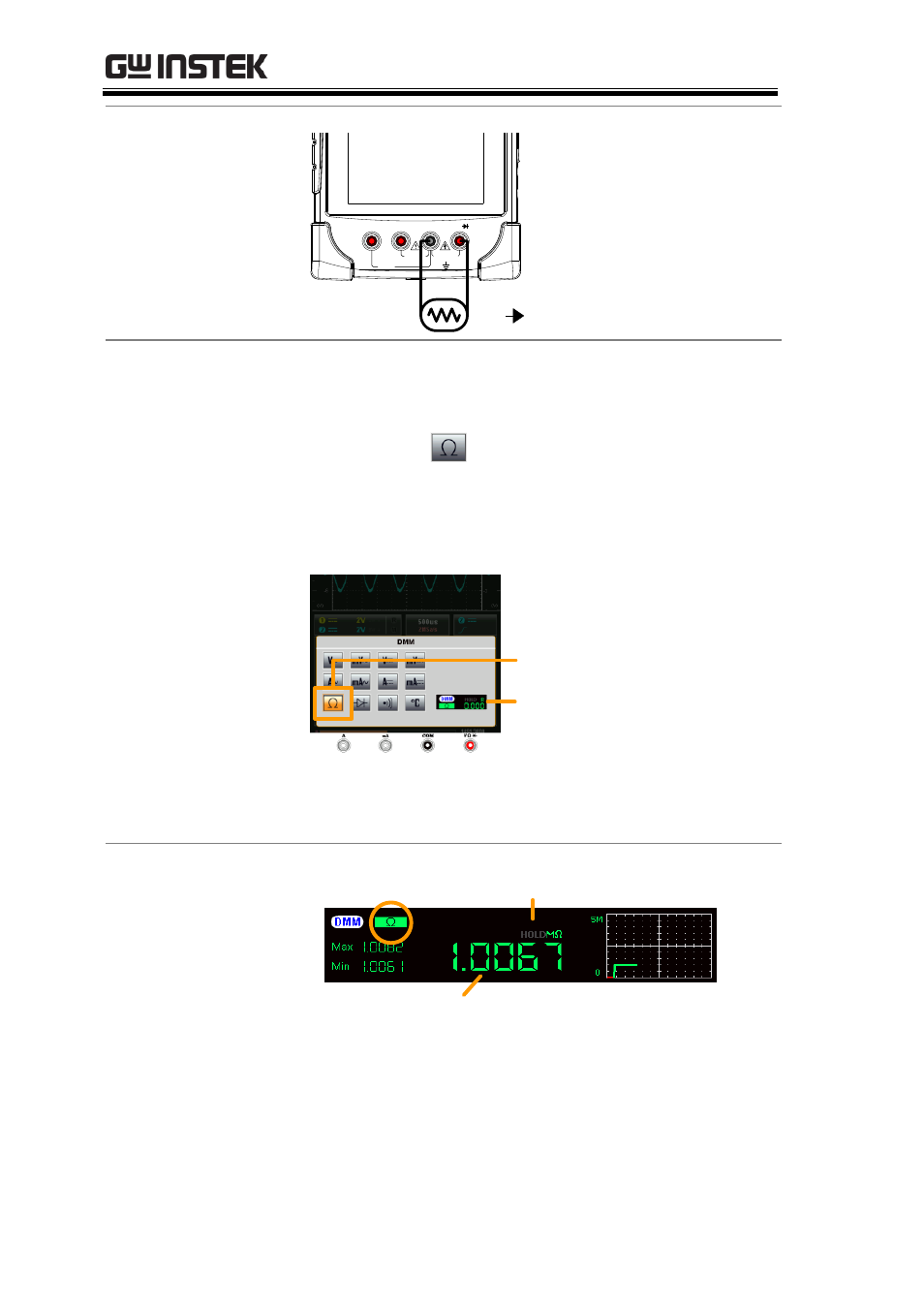

Connection
10A MAX
FUSED
V W COM A mA
GDS-220 Digital Storage Oscilloscope
200 MHz 1GSa/s
COM V
W
CAT II 600V
CAT III 300V FUSED
600mA MAX
Steps 1. From the multimeter settings choose the
resistance measurement.
Resistance =
2. The selected mode will be previewed in the
lower corner.
Resistance key
Multimeter
settings
Preview screen
3. Press anywhere outside of the multimeter
settings area to return to the main display.
Example
Resistance measurement
DMM mode
Max
Min
Hold on/off
Trend plot
(vertical view only)
