OPERATION
55
Note
If the vertical scale is changed when the Expand
function is set to ground, the signal will expand
from the ground level. The ground level position
does not change when the vertical scale is
changed.
If the vertical scale is changed when the Expand
function is set to center, the signal will expand
from the center of the waveform window. The
ground level position will suit to match the signal
position.

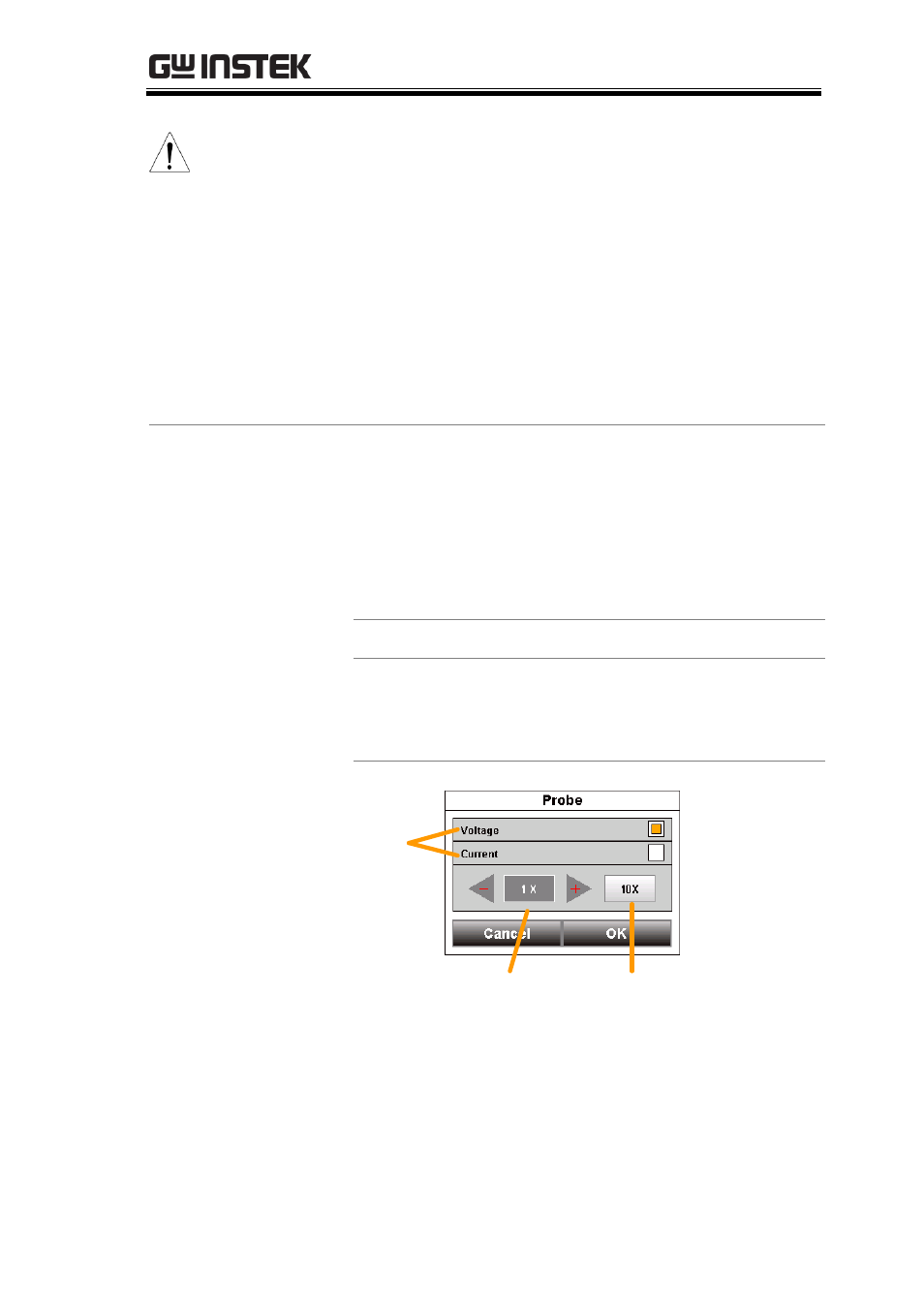

Probe This menu sets the probe attenuation and the
probe type.
Press Probe and set the probe parameters for
the chosen channel in the Probe menu that
appears.
Probe Type Voltage, Current
Probe attenuation 0.001X - 1000X
(1-2-5 step resolution)
10X (preset)
Probe
type
10X preset Attenuation
