OPERATION

149

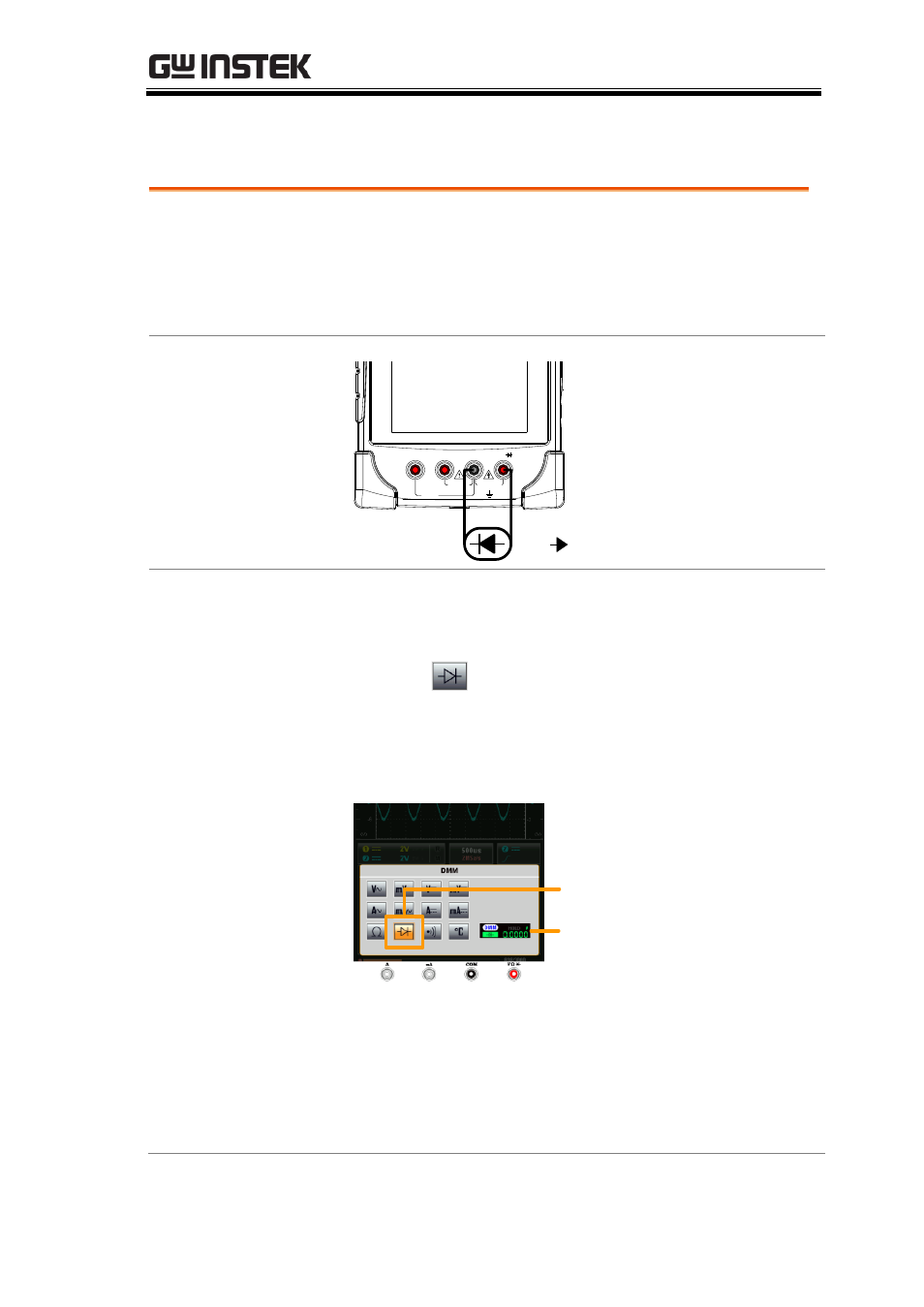

Diode Measurement

Back Ground

The diode test checks the forward bias
characteristics of a diode by running a constant
forward bias current through the DUT and
measuring the forward voltage drop.

Connection

10A MAX

FUSED

V

W

COM

A

mA

GDS-220

Digital Storage Oscilloscope

200 MHz 1GSa/s

COM

V

W

CAT II

600V

CAT III

300V

FUSED

600mA MAX

Steps

1. From the multimeter settings choose the diode

measurement.

Diode =

2. The selected mode will be previewed in the

lower corner.

Diode key

Multimeter

settings

Preview screen

3. Press anywhere outside of the multimeter

settings area to return to the main display.

4. OPEN will be displayed when the diode passes

the diode test.
