OPERATION

125

Saving and Configuring Image Files

Background

Image files can be saved to the internal memory
in a number of file formats. Custom notes can
also be saved with the image file. The brief
mode allows Custom notes can also be attached
to image files or on-screen items such as
automatic measurements and trigger positions
can be saved as extra data in the image file
using the Brief Mode.

Image File Items

Destination

Selects the save file destination.

File Format

Selects the image file format.

Brief Mode

Embeds data into the image file.

Note

Saves a note with the same
filename as the image file is
corresponds to.

Save Image

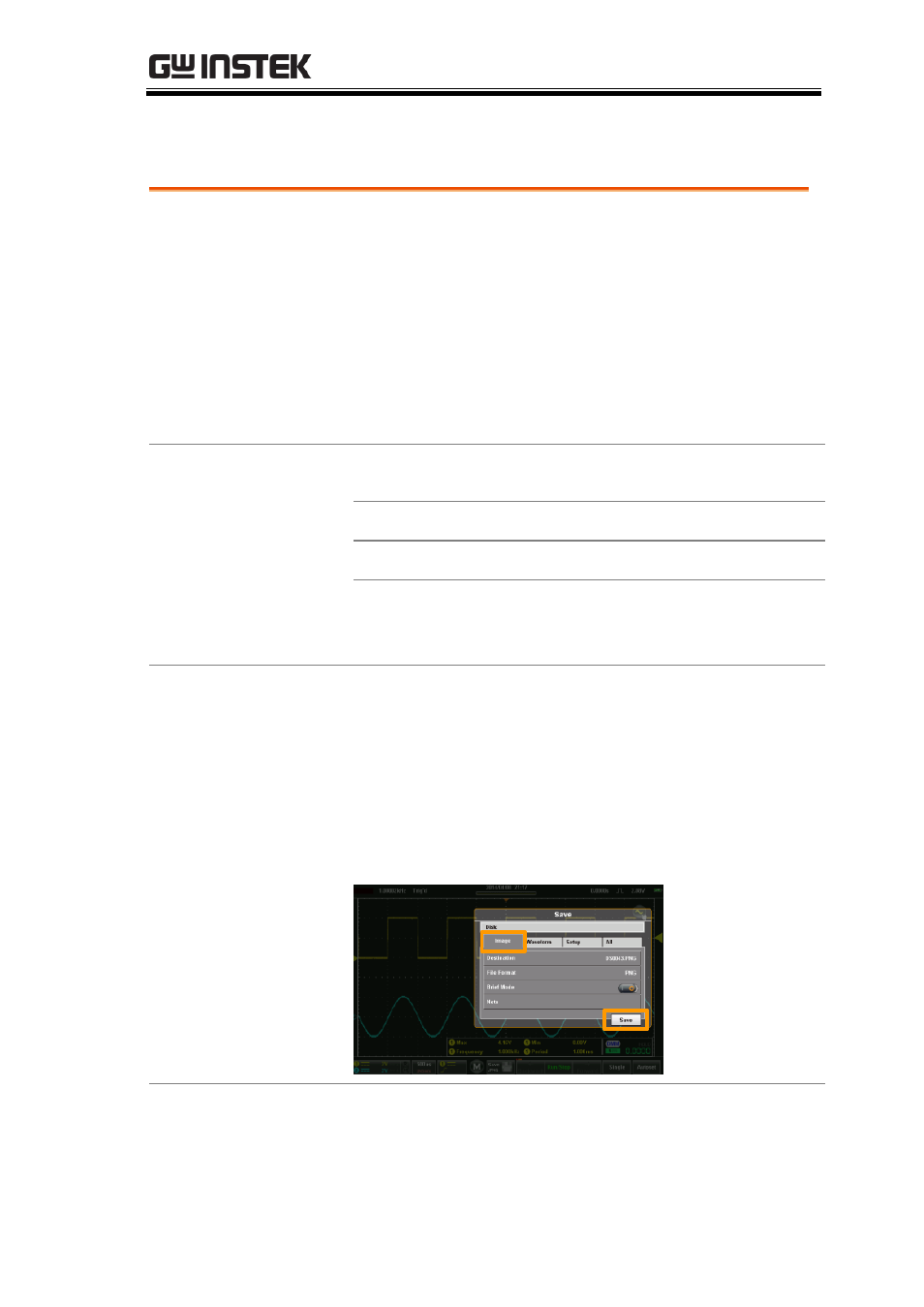

1. From the Save menu, press the Image tab.

2. To save, press the Save button at the bottom of

the image tab.

The file will be saved into the configured file
path. See below for the configuration details.


tab

Save

button

Destination

3. Press Destination to set the save file destination.

There are two options:
