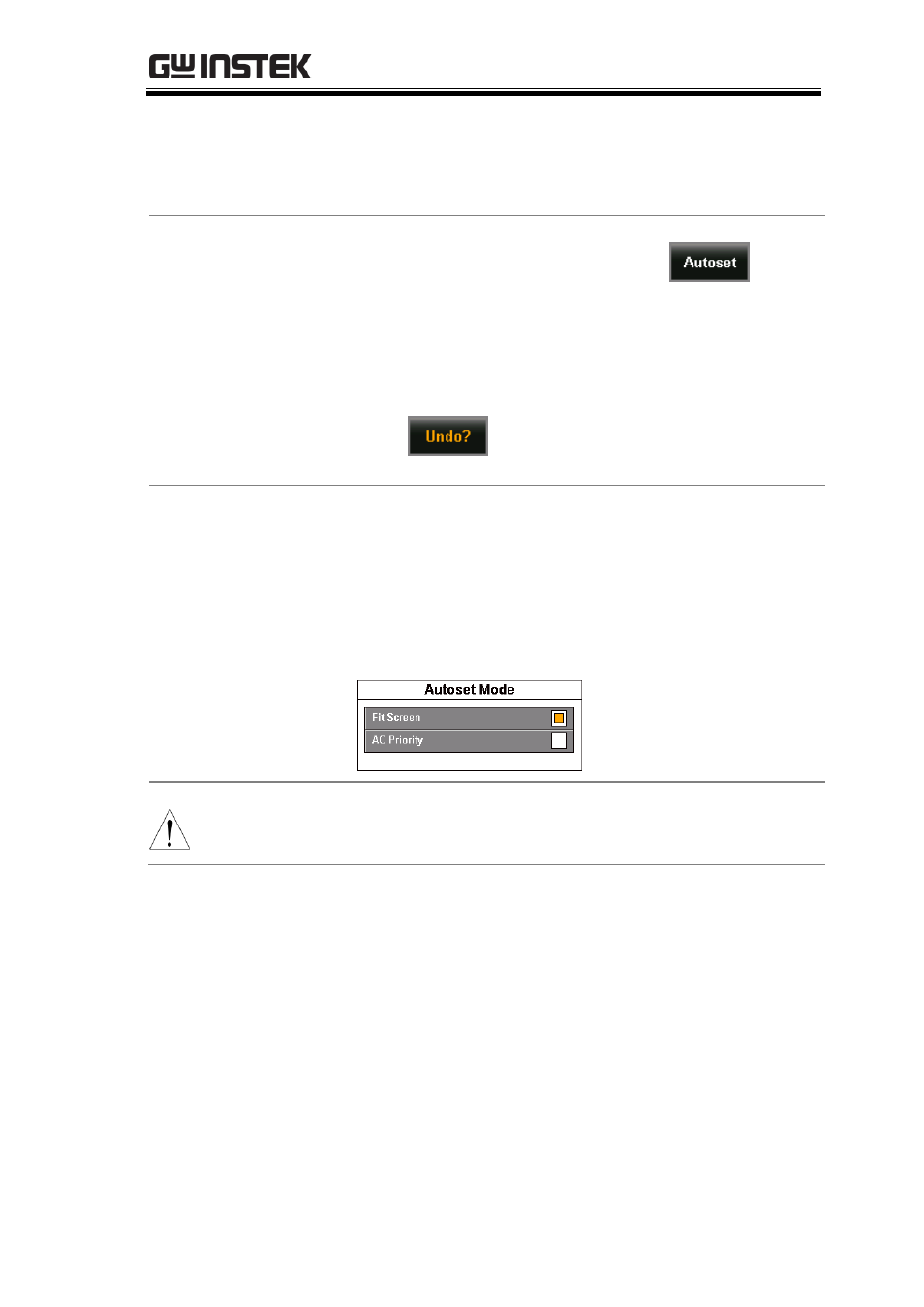

AC Priority

AC Priority mode will scale
the waveform to the screen
by removing any DC
component.

Steps

1. From the main display press the

Autoset key.

2. The waveform will appear on the display.

3. For a few seconds you will have the option to

press

Undo? to undo the autoset

configuration.

Autoset Mode

1. Long press Autoset to bring up the Autoset

Mode menu.

2. Press the appropriate check-box to select Fit

Screen or AC Priority.

Note

The Autoset Mode menu can also be accessed via
the Utility menu, see page 103 for details.
