OPERATION
81
Run/Stop Mode
Background By default the scope is in Run mode as soon as
it is turned on.
The Run/Stop key is shown in green when the
scope is in Run mode and red when it is in Stop
mode.
Toggle Modes Press the Run/Stop key to toggle between Run
and Stop modes.
Record
Navigation 1. Put the scope into Run mode (described above).
2. After the desired number of samples has been
recorded, toggle the scope to Stop mode by
pressing the Run/Stop key.
3. Use the Backward and Forward keys to
navigate to the desired waveform sample.
4. When the Backward or Forward keys are used a
slider will appear allowing you to quickly
navigate to the desired sample. The slider will
disappear after a short while of inactivity.
5. The slider can be pinned/unpinned from the
menu bar by toggling the pin icon.

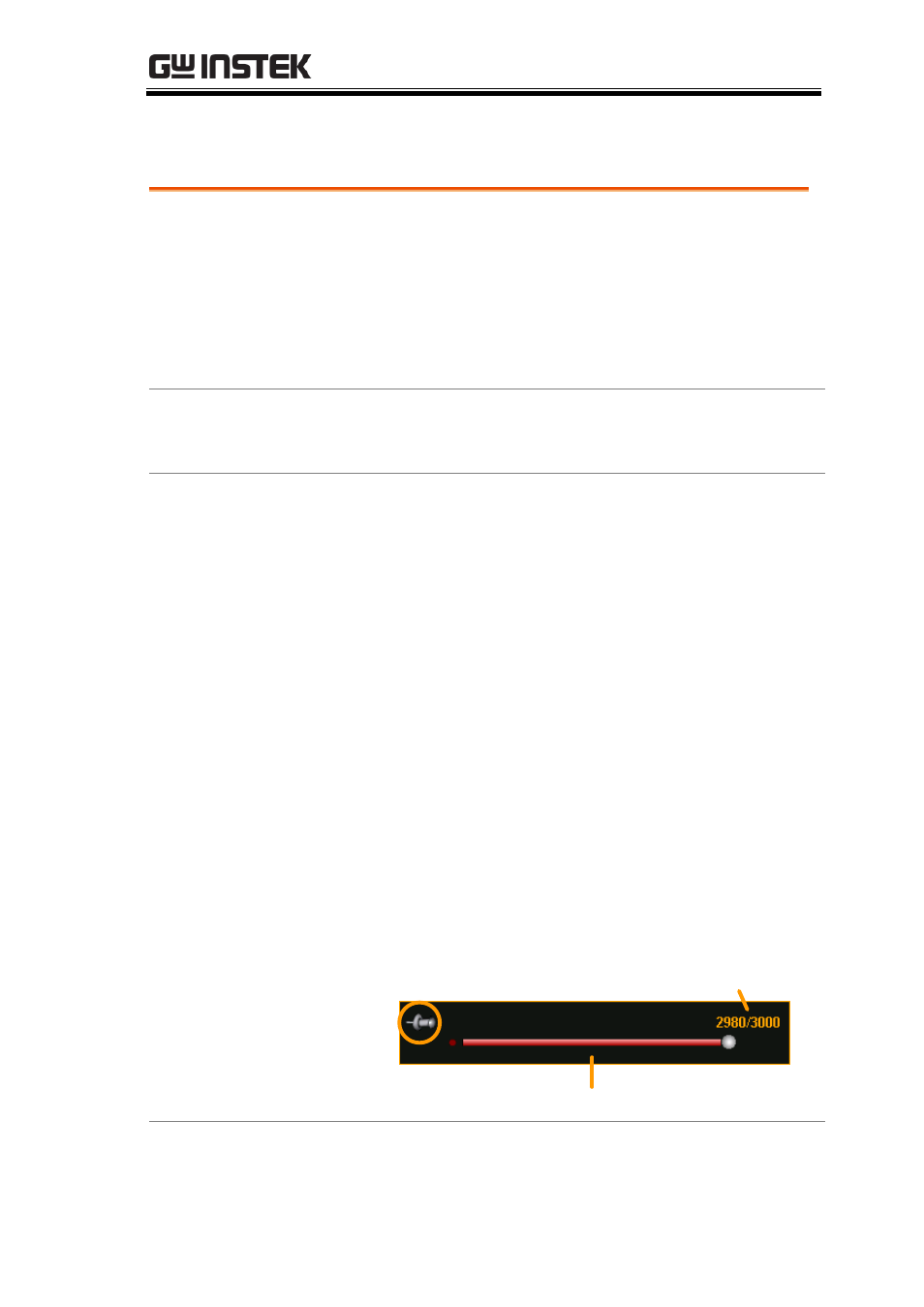

Sample number/ Sample size
Sample slider
Pin/Unpin icon
