4. Cursors will now appear on the display for the
currently selected channel, 2 lined cursors for
the Horizontal Cursor option and 4 lined
cursors for the Combined Cursor option.

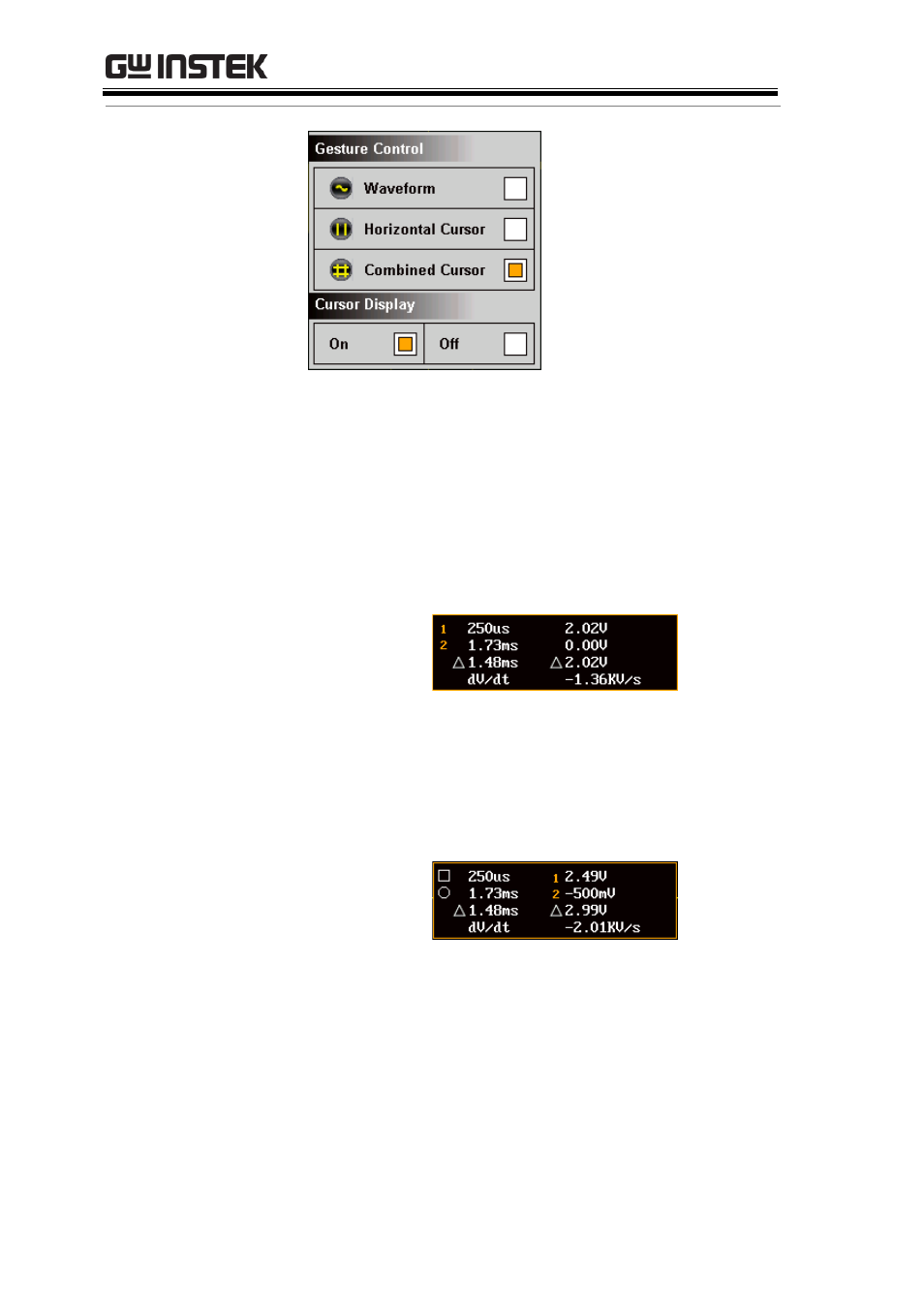

5. The cursor measurements will appear in a
window in the top left-hand side.
Horizontal:
Cursor 1, 2
Δ
Time/frequency, voltage/current
at crossing.
Delta (difference between cursors)
dV/dt or dI/dt.
Combined:
□
,
○
Time/Frequency: Cursor 1,
cursor 2
Cursor 1, 2
Δ Voltage/Current : Cursor 1,
cursor 2
Delta (difference between cursors)
dV/dt or dI/dt.
