GDS-200 & GDS-300 Series User Manual

118

Go-NoGo Menu

A Go-NoGo test checks if a waveform fits inside a user-specified
maximum and minimum boundary. Boundary templates can be
automatically created from a source channel or created manually
using the touch screen. Boundary tolerances and violation
conditions can also be set.

Accessing the Go-NoGo Menu

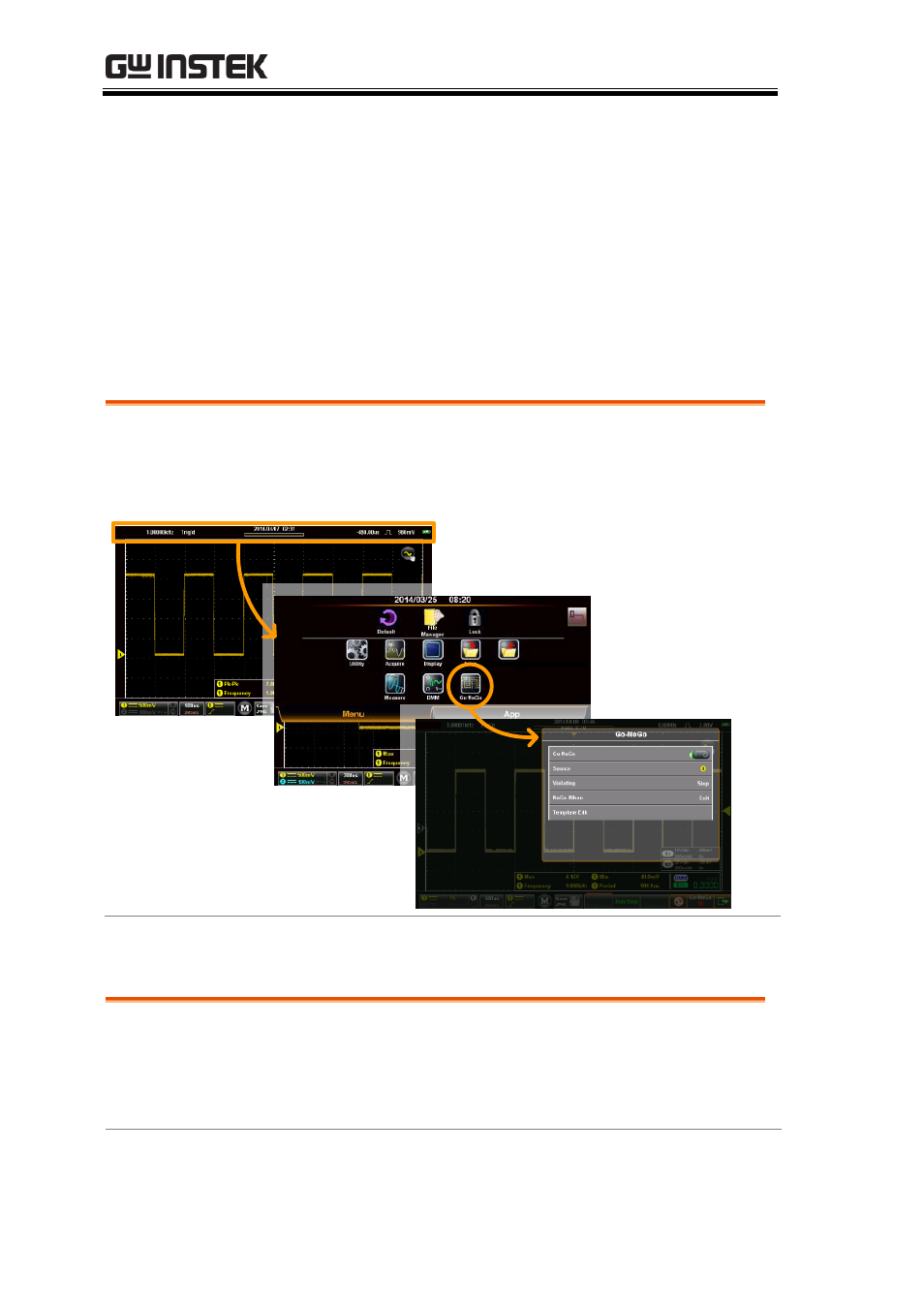

From the main screen, press the title bar to bring up the Drop Down
menu. Press the Go-NoGo icon to show the Go-NoGo menu

Menu tray

App tray

Go-NoGo

Configuring the Go-NoGo Menu

Source

1. Press the Source option to set the source

waveform.

Source

CH1, CH2

Condition

2. Press NoGo When to set the NoGo conditions.
