GDS-200 & GDS-300 Series User Manual

60

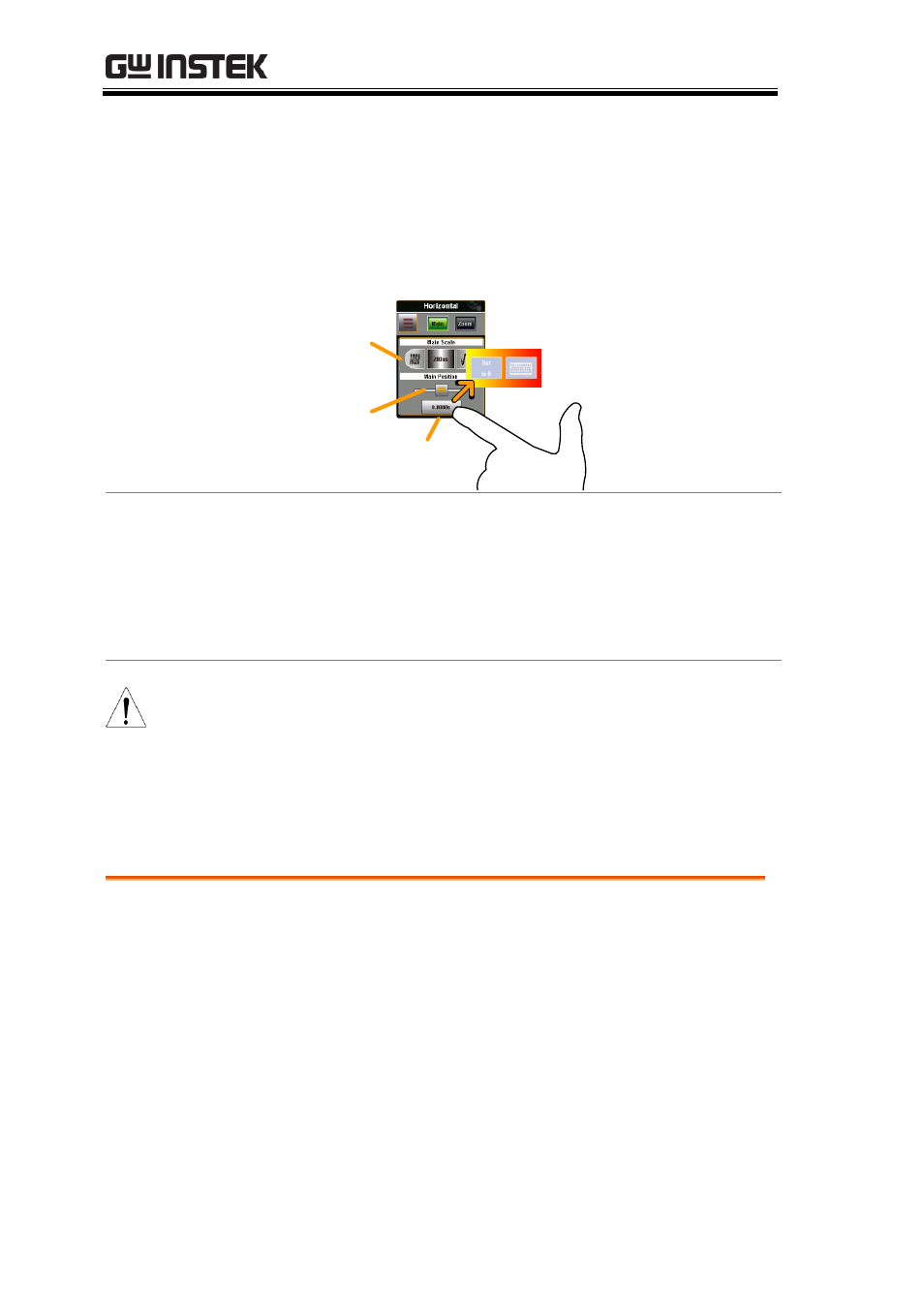

7. To manually set the horizontal position, drag

from the Horizontal Position key and drop to
the keyboard icon. Type in the value for the
horizontal position with the keypad that
appears.

Scale

picker

Position

slider

Drag and drop the

Horizontal

Position key to

manually set the

horizontal position

Horizontal

Position key

Touch Control

1. Swipe the screen to set the horizontal

position.

Page 44

2. Use a pinch gesture to increase or

decrease the horizontal scale.

Page 45

Note

Position: When using the touch screen to set the
horizontal position, it will automatically snap to
the zero position at each crossing. To move past
the zero position, use the swipe gesture again.

Horizontal Expansion

Background

The Options menu in the Horizontal/Zoom
menu allows you to set the horizontal
expansion mode.

There are two horizontal expansion options:
By Center and By Trigger Position.

By Center

Scales the waveform from the
center of the display.
