Run Mode
The scope has three main running modes, Run, Stop and Single.
Run mode continuously captures (triggered) waveforms in a FIFO
buffer. Each waveform that is captured can be replayed when the
scope is in the Stop mode. The number of waveforms that are
captured depends on the sample rate and the memory length.
Stop mode stops capturing waveforms and allows you to view any
waveform that was previously captured in the Run mode.
Single mode captures a single waveform as soon as the trigger
conditions are met.

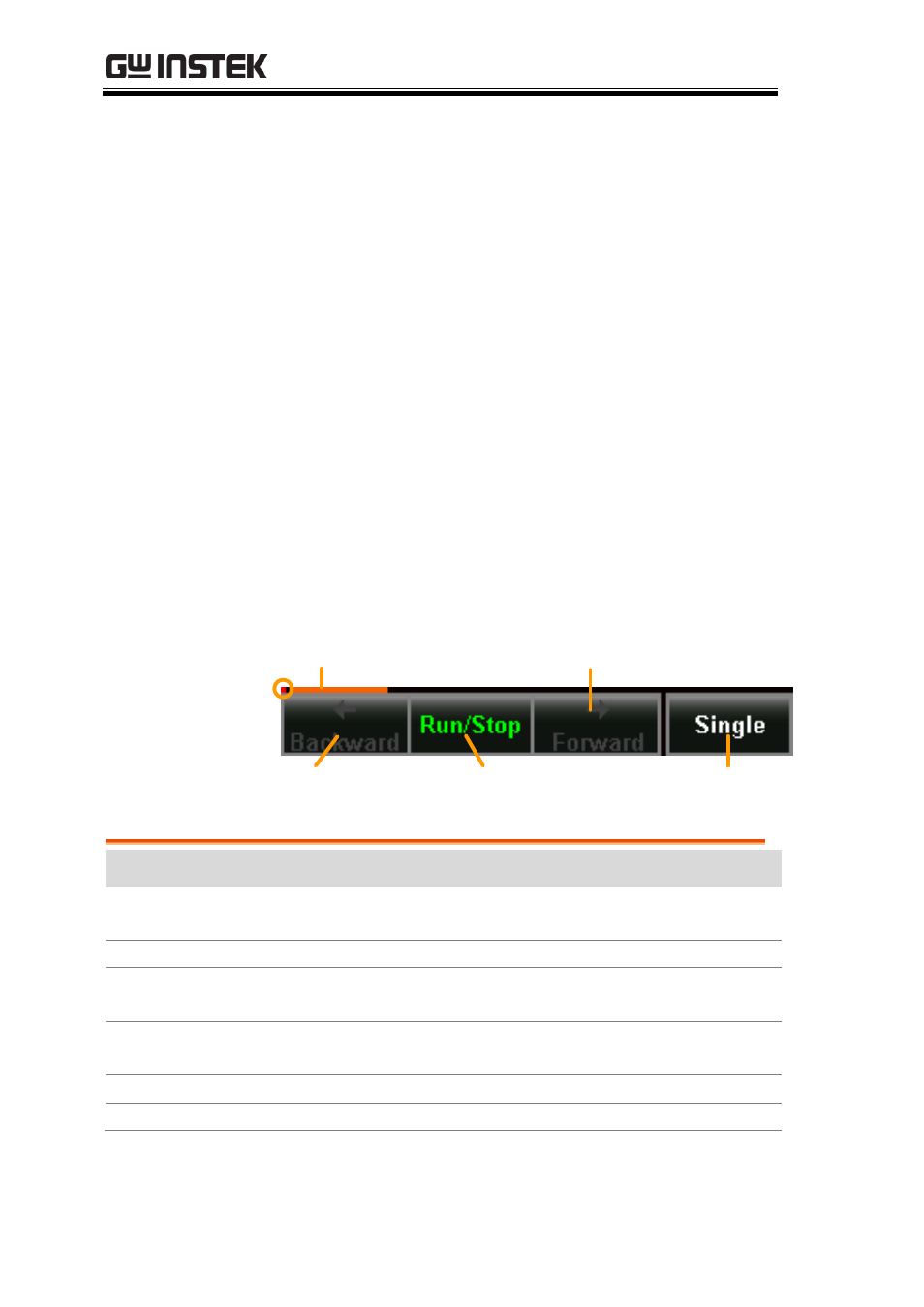

Run/Stop and Single Key Overview
The Run/Stop key shows the Run/Stop status, the record progress
of the captured waveforms and the navigation keys for navigating
captured waveforms when in the Stop mode.
Step forward
Run/Stop key Single key
Progress bar
Record indicator
Step backward
Item Description
Record
Indicator The Record indicator blinks when the scope is
triggering.
Progress Bar The Progress bar indicates the record progress.
Step Forward Steps to the next captured waveform when the
scope is in Stop mode.
Step Backward Steps to the previous captured waveform when the
scope is in Stop mode.
Run/Stop Key Toggles the scope between Run and Stop mode.
Single Key Turns on the Single Trigger mode.
