OPERATION
53

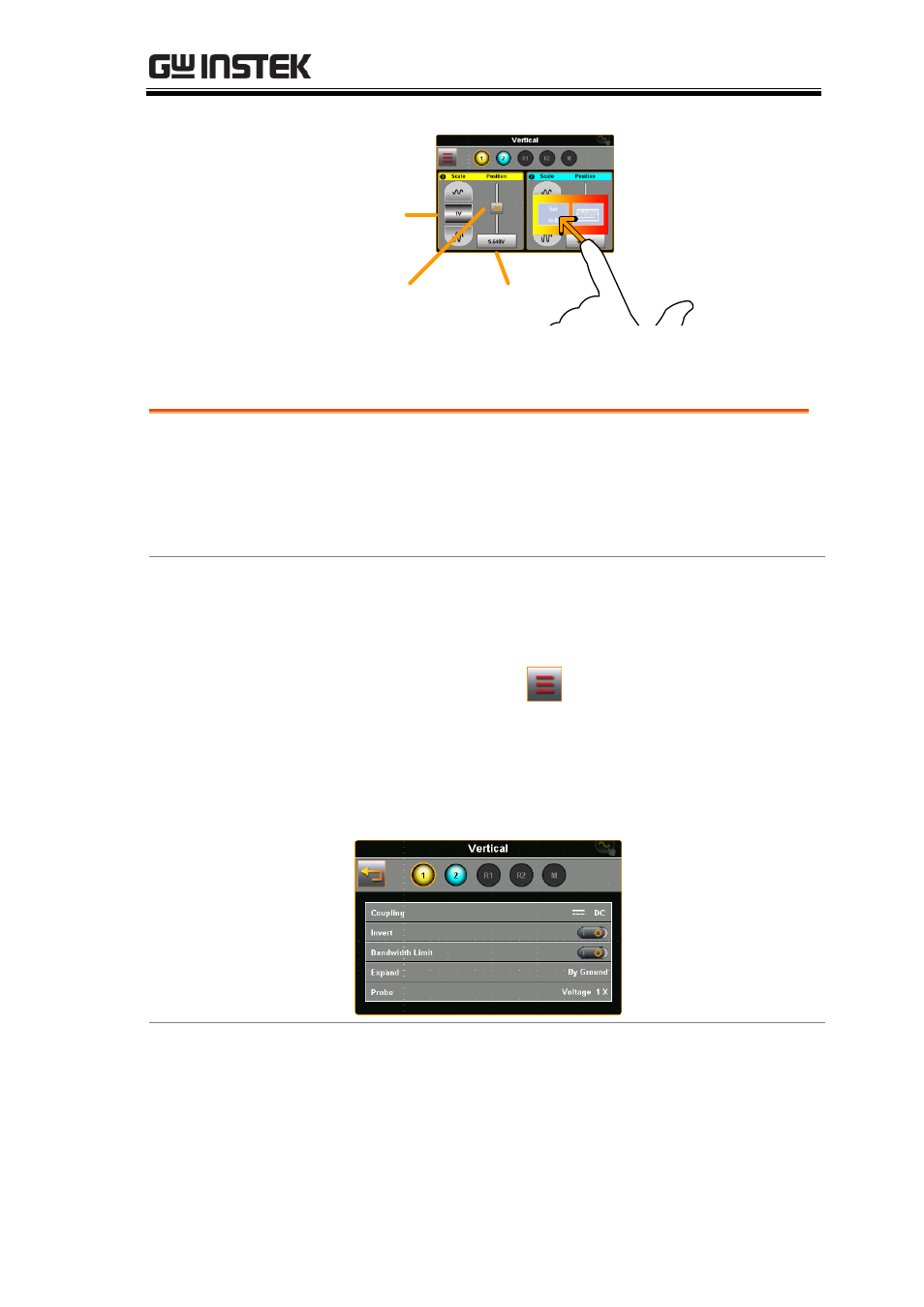

Scale
picker
Vertical
Position key
Position
slider
Drag and drop the
Vertical position
key to manually
set vertical
position
Vertical Options – Channel
Background The Options menu in the Vertical menu allows
you to set the coupling, invert waveforms, turn
the bandwidth limit on, set the expansion mode
and set the probe attenuation.
Setup 1. Select a channel by tapping on the
corresponding channel icon.
Page 51
2. Press the Options icon to bring up the
vertical options.
The vertical options for the selected
channel/waveform will be displayed.
Coupling 1. Press Coupling to set the coupling for the
selected channel.
2. Choose the coupling type in the Coupling
menu that appears.
