OPERATION

129

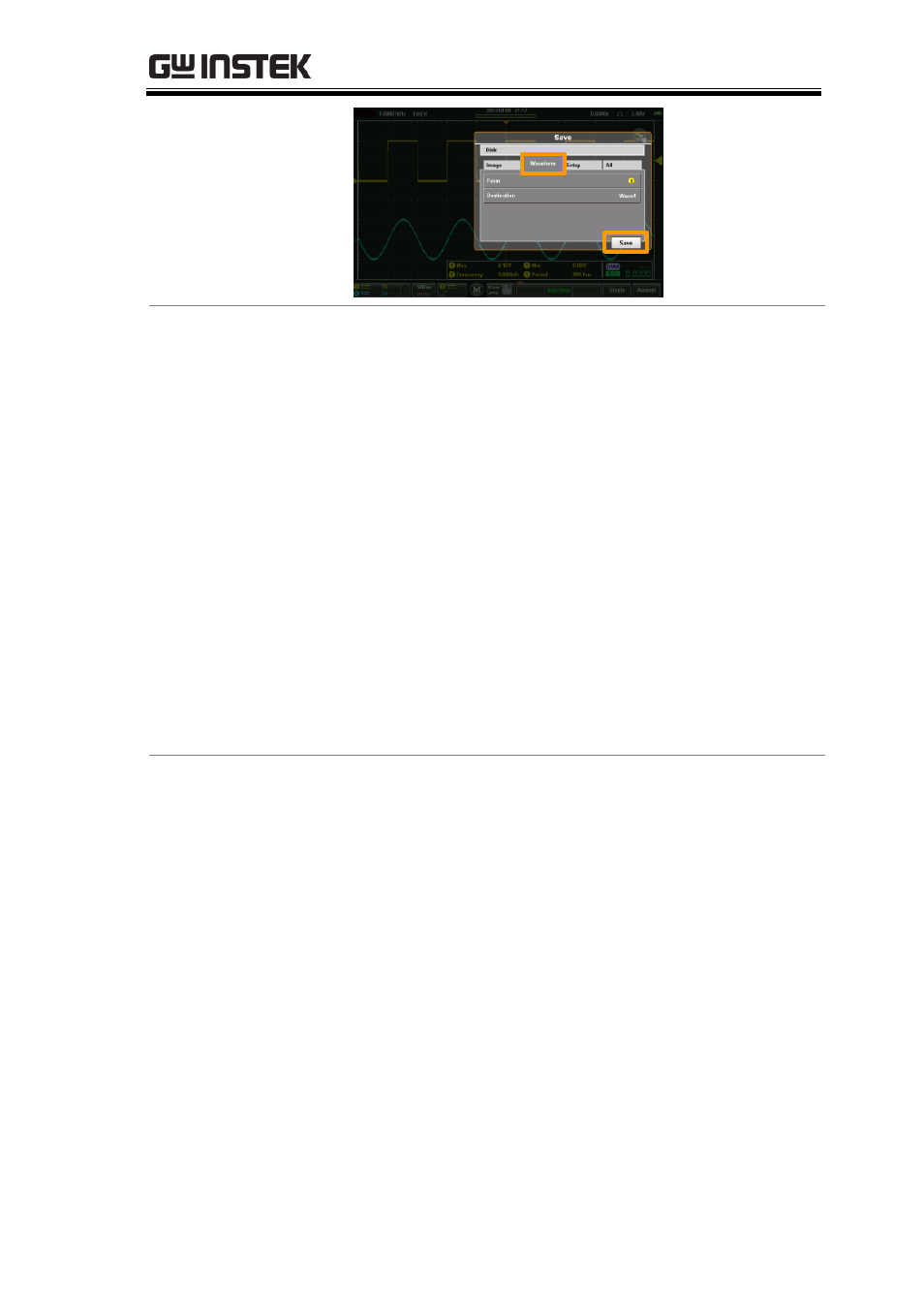

Waveform

tab

Save

button

From

3. Use the From option to select the source

waveform:

1

Channel 1

2

Channel 2

M

Math source

R1

Reference waveform 1

R2

Reference waveform 2

All Displayed

Saves all the displayed
waveforms into a directory,
ALXXXX, where XXXX is a
number that is incremented each
time a save is performed.

Destination

4. If only a single source waveform is to be saved,

the following destination options are available:

Wave1

Wave1 - Wave20

Ref

R1 - R2

File

Pressing File will allow you to
either set the file path or rename
the file from the default of
DSXXXX.LSF, where XXXXX is a
number that is incremented each
time the waveform is saved.
