OPERATION

103

Configure Autoset Mode

Background

There are two operating modes for the Autoset
function: Fit Screen Mode and AC Priority
Mode. Fit Screen Mode will fit the waveform to
the best scale, including any DC components
(offset). AC Priority mode will scale the
waveform to the screen by removing any DC
component.

Steps

From the Utility menu, press Autoset Mode and
select the mode.

Autoset Mode Fit Screen Priority, AC Priority

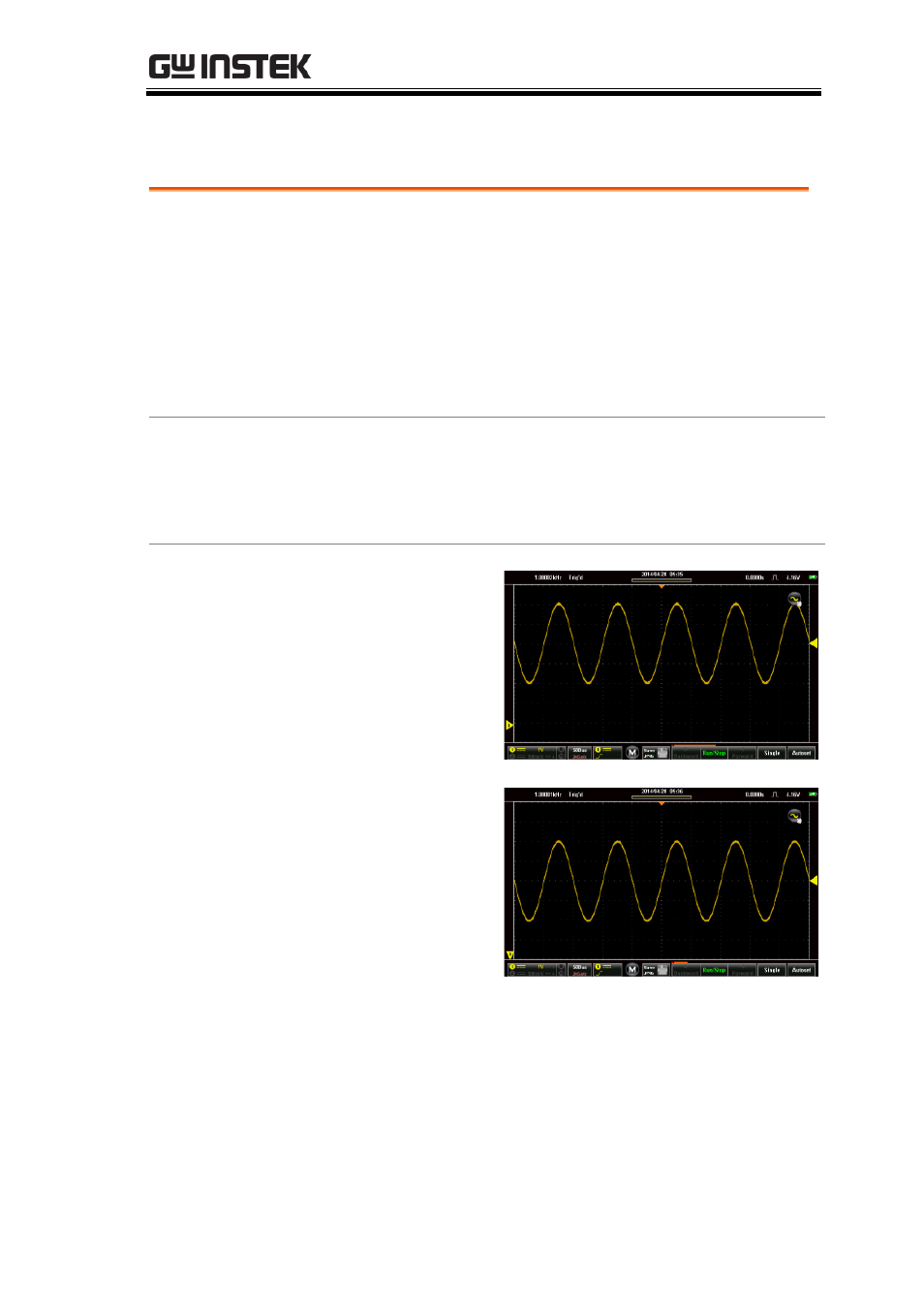

Example 2VPP
signal with 2V DC
offset

Fit Screen

AC Priority
