OPERATION

151

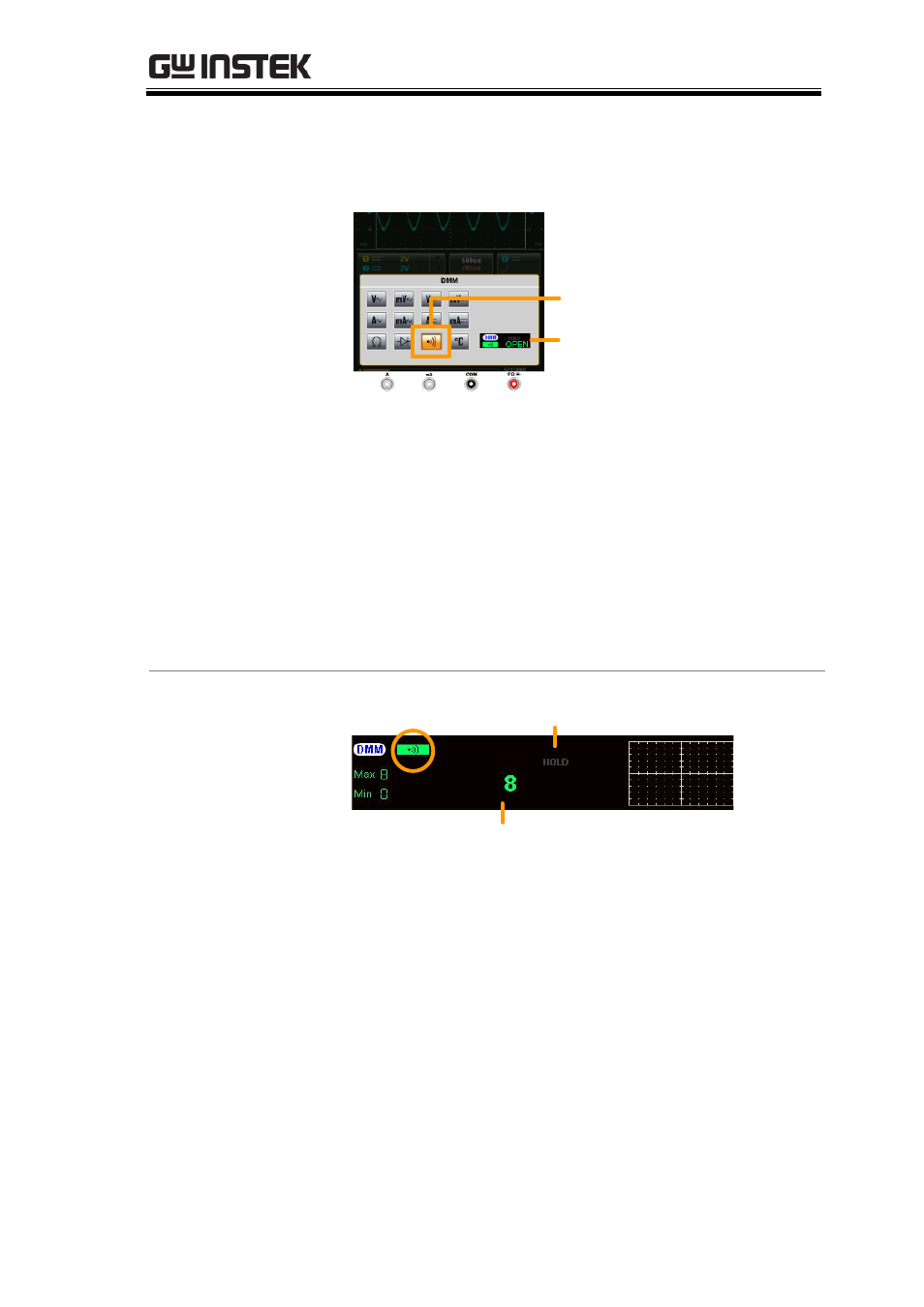

2. The selected mode will be previewed in the

lower corner.

Continuity key

Multimeter

settings

Preview screen

3. Press anywhere outside of the multimeter

settings area to return to the main display.

4. The approximate resistance will be displayed

when there is continuity present in the
connection.

OPEN will be displayed if continuity is not
present.

Example

Continuity result

DMM mode

Hold on/off
