GDS-200 & GDS-300 Series User Manual
56
Vertical Options – Reference Waveforms
Background
The Options menu in the Vertical menu allows
you to view the selected reference waveform
sample rate, record length and creation date.
Setup
1. Select a reference by tapping on the
corresponding R1 or R2 icon.
2. Press the Options
icon to bring up the
vertical options.
The data for the selected reference waveform
will be displayed.
Note
The reference waveforms can only be recalled if
they have been saved first.

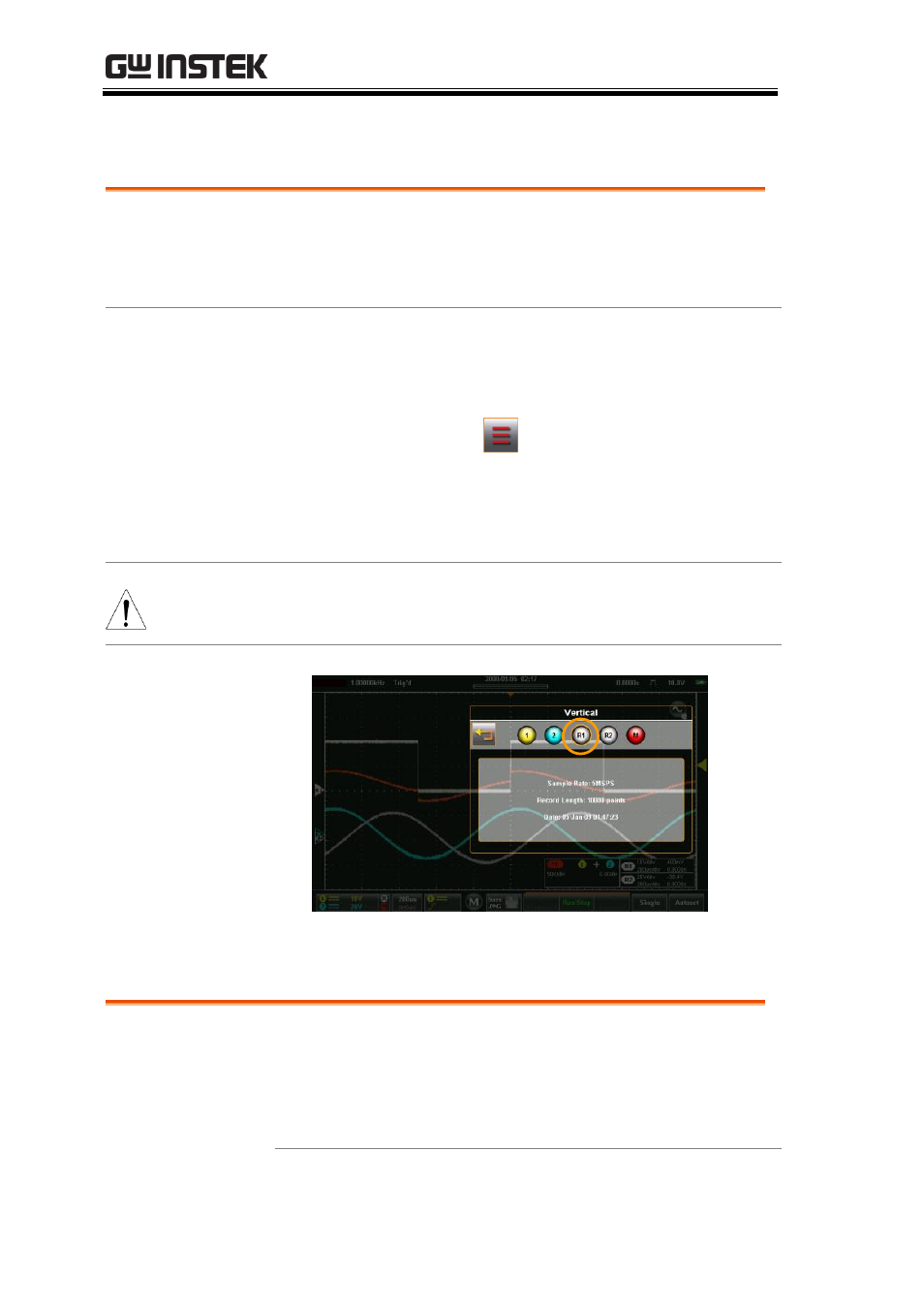

Selected reference waveform
Reference
waveform
information
Vertical Options – Math
Background
When Math (M) is selected, the Options menu
in the Vertical menu allows you to set the math
mode, source operators, units and windowing
function.
