OPERATION

145

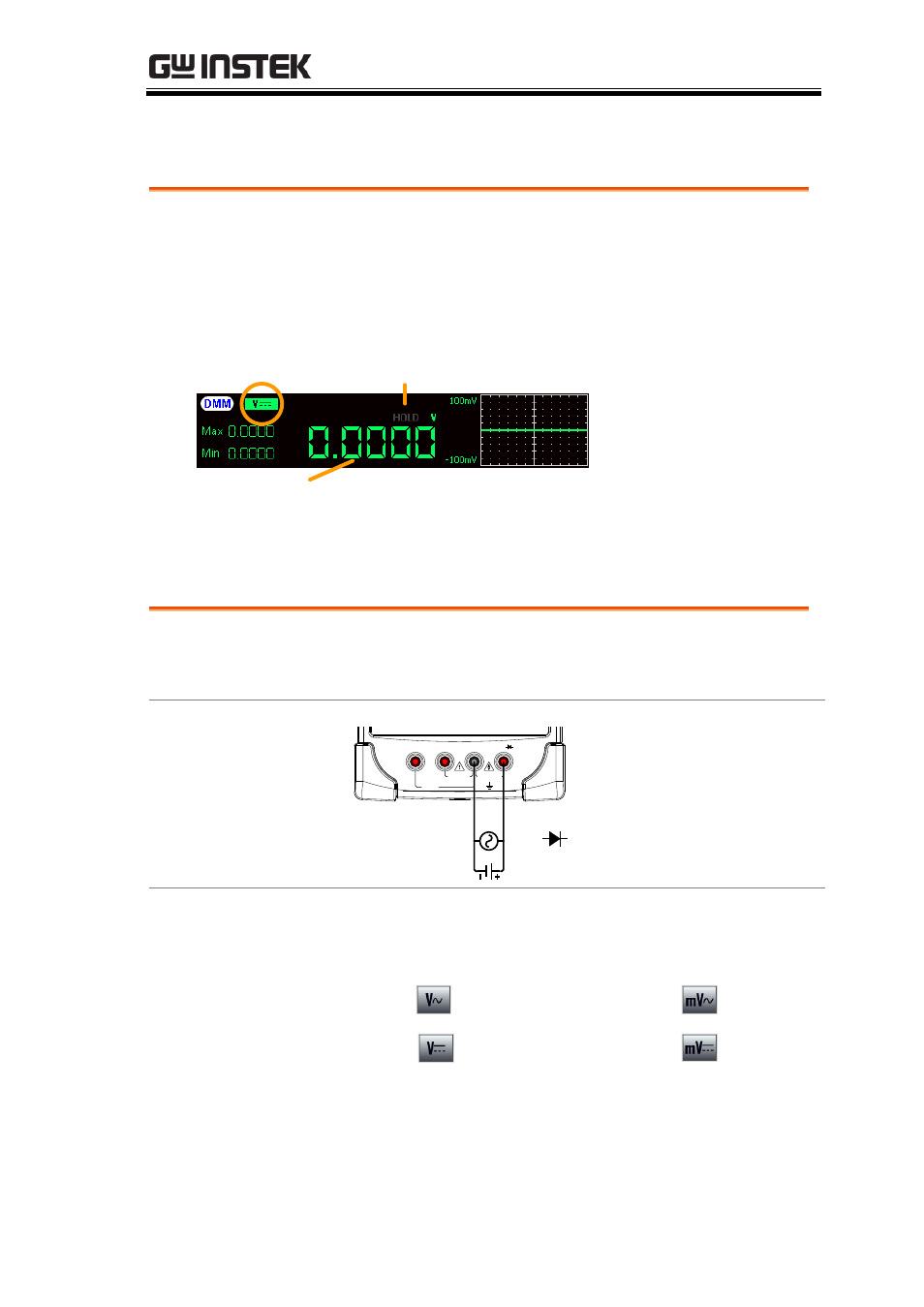

Multimeter Display Overview

The DMM display will show the measurement mode, max, min and
current measurement, and a trend plot (vertical view only) of the last 120
measurements. Please note that in the horizontal view, the DMM display
is only fully shown in the expanded view, see above for details.

Current measurement

DMM mode

Max

Min

Hold on/off

Trend plot

(vertical view only)

AC/DC Voltage Measurement

Background

The GDS-200/300 can measure up to 600V
(CAT II) or 300V (CAT III).

Connection

10A MAX

FUSED

V

W

COM

A

mA

GDS-220

Digital Storage Oscilloscope

200 MHz 1GSa/s

COM

V

W

CAT II

600V

CAT III

300V

FUSED

600mA MAX

Steps

1. From the multimeter settings choose ACV,

ACmV, DCV or DCmV.

ACV =

ACmV =

DCV =

DCmV =
