GDS-200 & GDS-300 Series User Manual

160

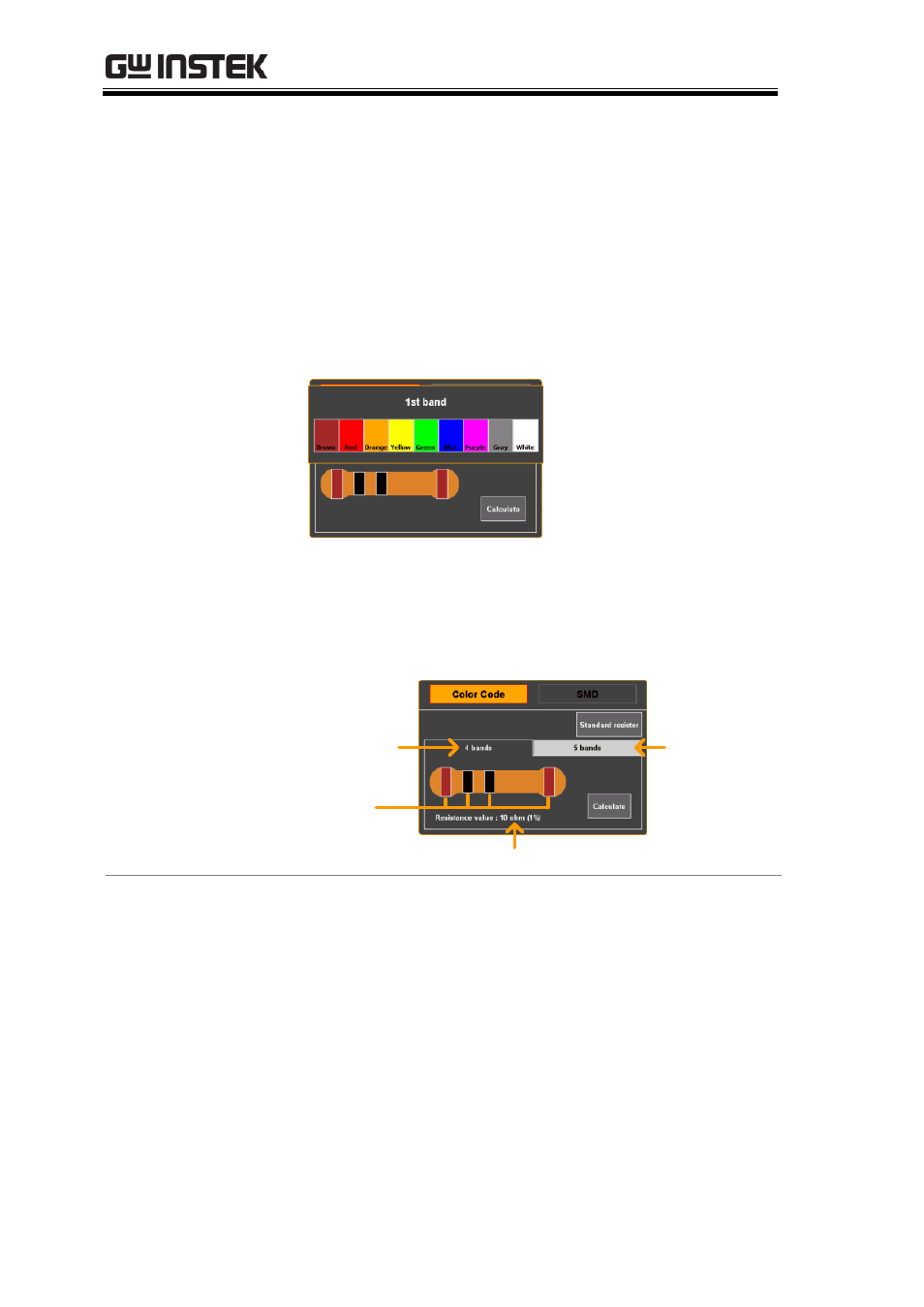

2. Press the Color Code button for standard pin-

type resistors.

3. Select the 4 band or 5 band tab.

4. Press each of the colored bands in succession

and choose the appropriate color for each band
from the pop-up window.

5. Press Calculate to calculate the value of the

resistor.

Example:
Color Code

Color

bands

Color code button

4 bands

5 bands

Calculate

button

Resistance value

SMD Resistor
Values

1. SMD resistor values can be calculated in one of

3 ways; using a 3 or 4 digit code, using EIA-96
code or using 2%/5%/10% code.

2. Press the SMD button to select SMD resistors.

3. Select the tab corresponding to code used on

the SMD.
