OPERATION

131

For example if the waveform is saved as
DS001.lsf then the note will be saved as
DS001_LSF.txt.

Saving and Configuring Setups

Background

Setup files can be saved so that the instrument
state can be recalled at a later time.

Setup File Items

Destination

Selects the save file destination.

Save Setup

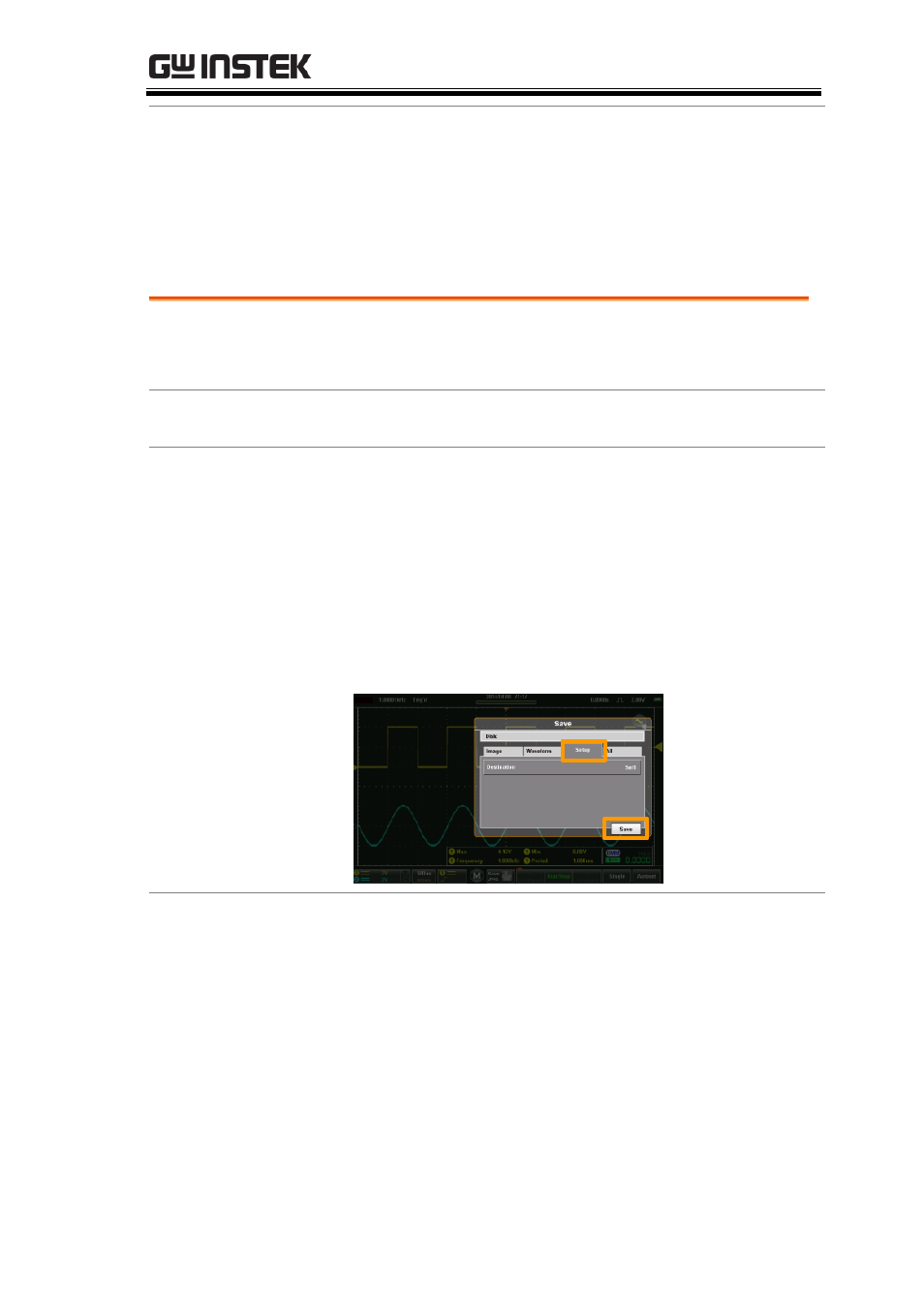

1. From the Save menu, press the Setup tab.

2. To save, press the Save button at the bottom of

the Setup tab.

The file will be saved into the configured
destination. See below for the configuration
details.

Setup

tab

Save

button

Destination

3. Press Destination to set the destination:

Set

Set 1 - Set 20

Press Edit label to set a label for
the selected setup slot.
