OPERATION

109

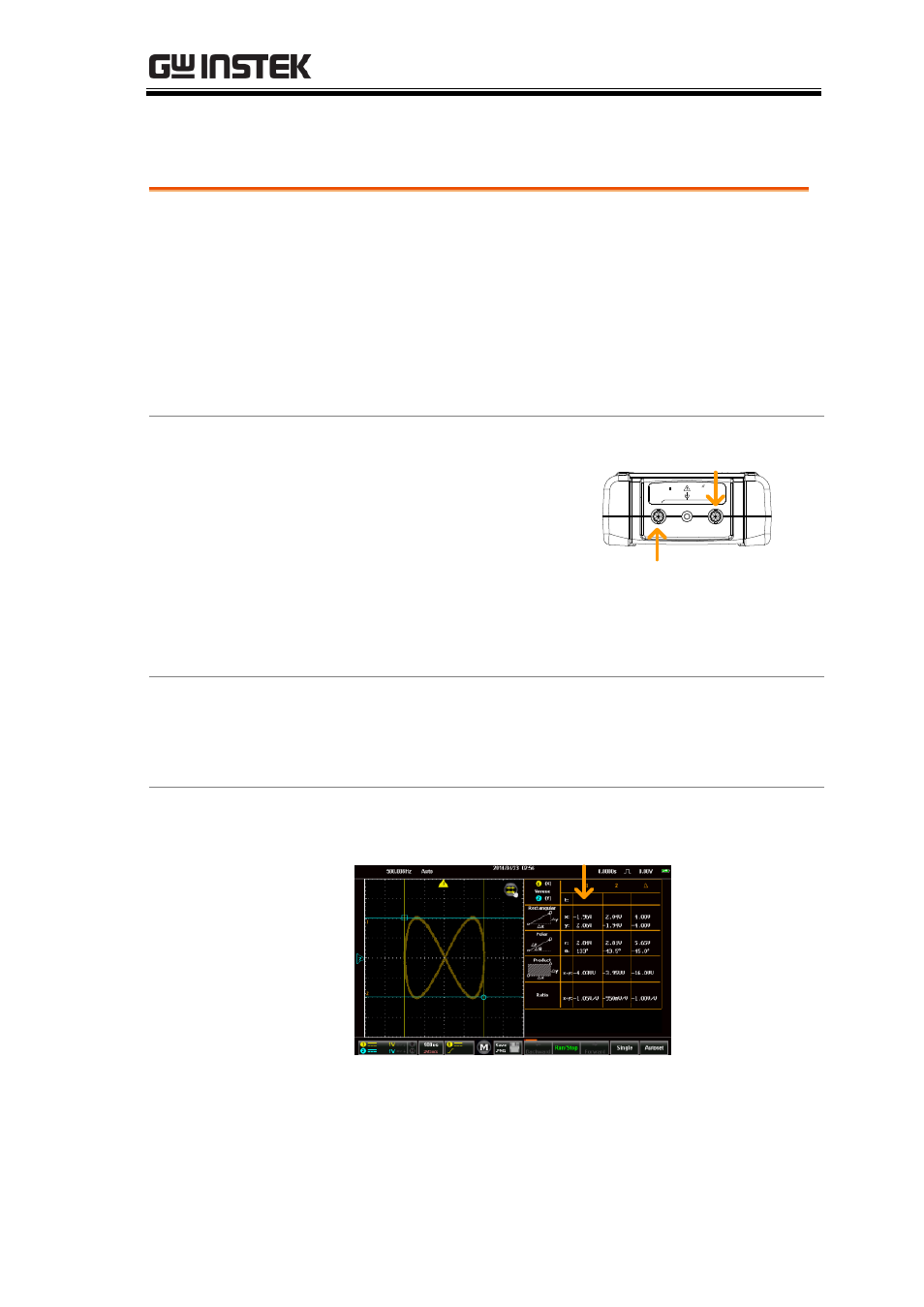

Show Waveform in XY Mode

Background

The XY mode maps the input of channel 1 to
the input of channel 2. This mode is useful for
observing the phase relationship between
waveforms.

XY mode can also be used with cursors, see
page 83 to turn cursors on.

Connection

1. Connect channel 1 to

the X-axis source.

M

W

16.5pF

300Vrms MAX.

1

1

2

CAT

300V

CH2, Y-axis

CH1, X-axis

2. Connect channel 2 to

the Y-axis source.

3. Activate both channel 1 and

channel 2.

Page 41

Steps

1. From the Acquire menu toggle XY mode on.

1. The X-Y mode will appear.

Example

X-Y

waveform

X-Y cursor

measurements
