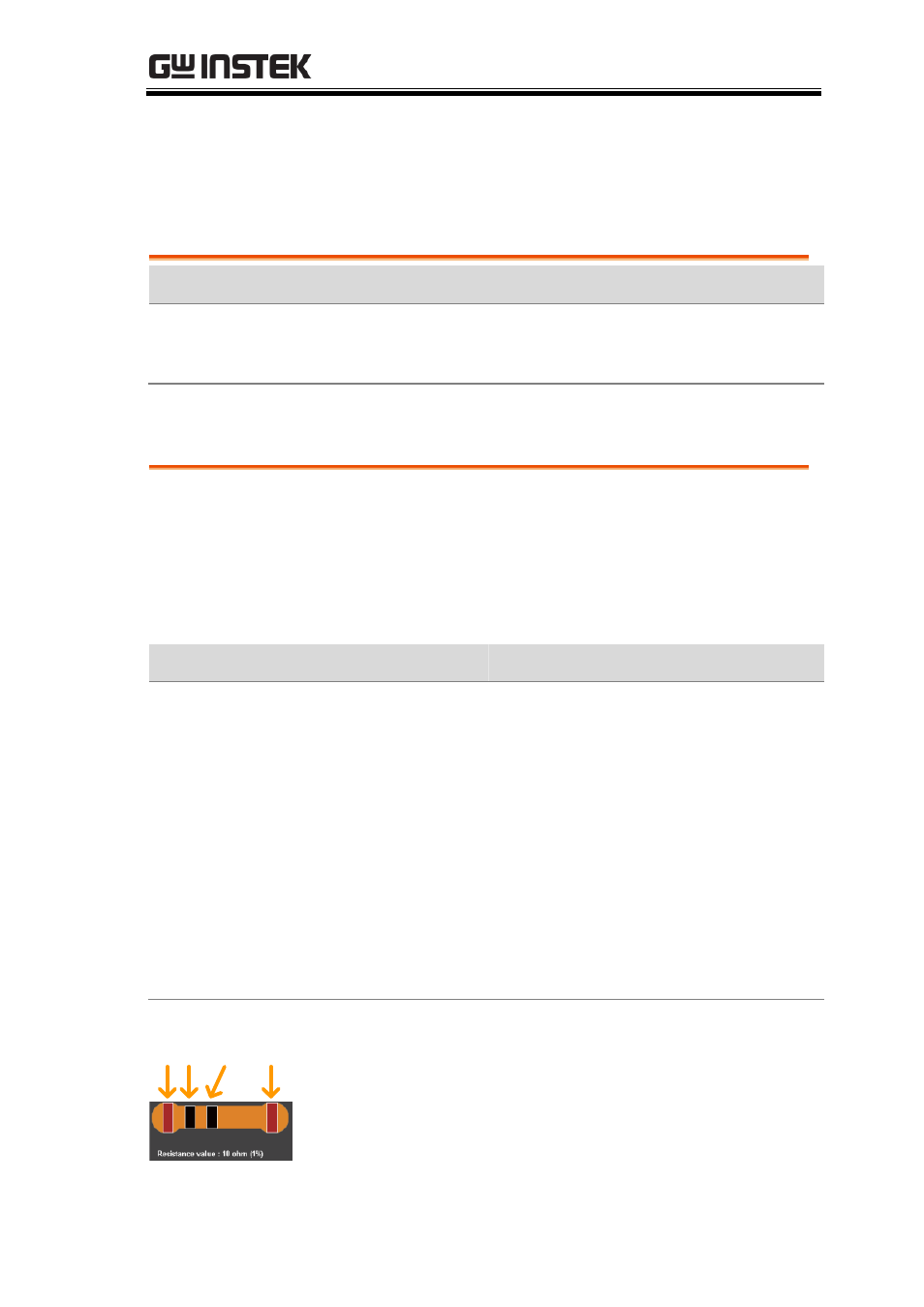

Resistor Standards

Resistor Standards

Standard Tolerance

Standard

Tolerance

E6

20%

E48

2%

E12

10%

E96

1%

E24

5%

E192

0.5%

Standard Resistor Code

Standard resistors use colored bands to represent the value of the
resistor. To read 4-colored bands, the first two digits represent the
base value, the third is a multiplier and the last band is the
tolerance. For a 5-colored band, the first 3 digits represent the base
value, the 4

th

digit is the multiplier and the last digit is the tolerance.

Band color

Base digits

Multiplier

Tolerance

Black

0

10

0

-

Brown

1

10

1

±1%

Red

2

10

2

±2%

Orange

3

10

3

-

Yellow

4

10

4

-

Green

5

10

5

-

Blue

6

10

6

-

Violet

7

10

7

-

Grey

8

10

8

-

White

9

10

9

-

Silver

-

10

-2

±10%

Gold

-

10

-1

±5%

Example: 4 bands, Brown, Black, Black, Brown:

1

10 x 1, 1% = 10

±

1%

0 10

0

1%
