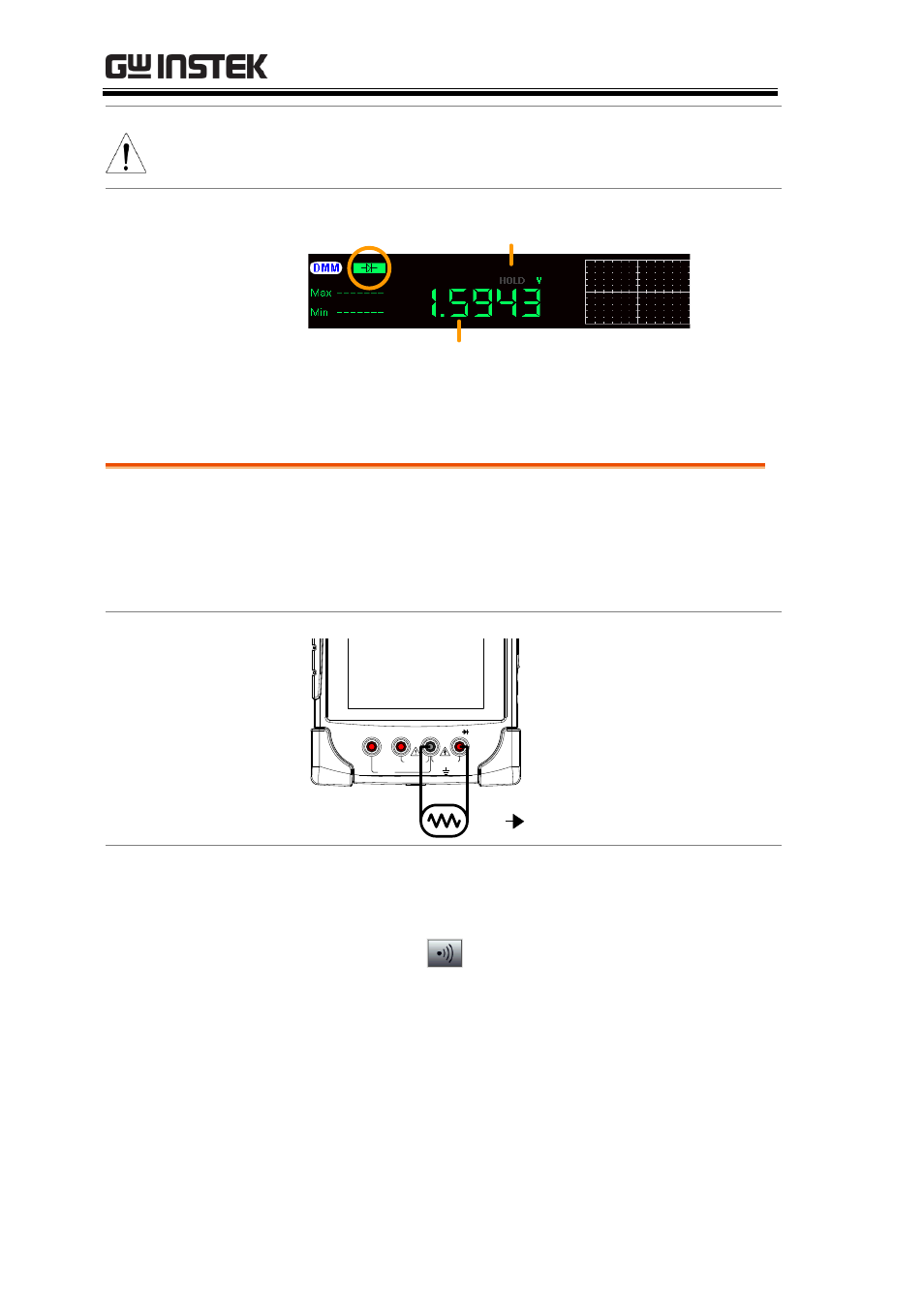

GDS-200 & GDS-300 Series User Manual

150

Note

Ensure the diode polarity is correct before
performing the diode measurement.

Example

Diode measurement

DMM mode

Hold on/off

Continuity Measurement

Back Ground

The continuity test checks that the resistance in
the DUT is low enough to be considered
continuous (of a conductive nature). The
continuity threshold level is set to <15Ω.

Connection

10A MAX

FUSED

V

W

COM

A

mA

GDS-220

Digital Storage Oscilloscope

200 MHz 1GSa/s

COM

V

W

CAT II

600V

CAT III

300V

FUSED

600mA MAX

Steps

1. From the multimeter settings choose the

continuity measurement.

Continuity =
