OPERATION
51

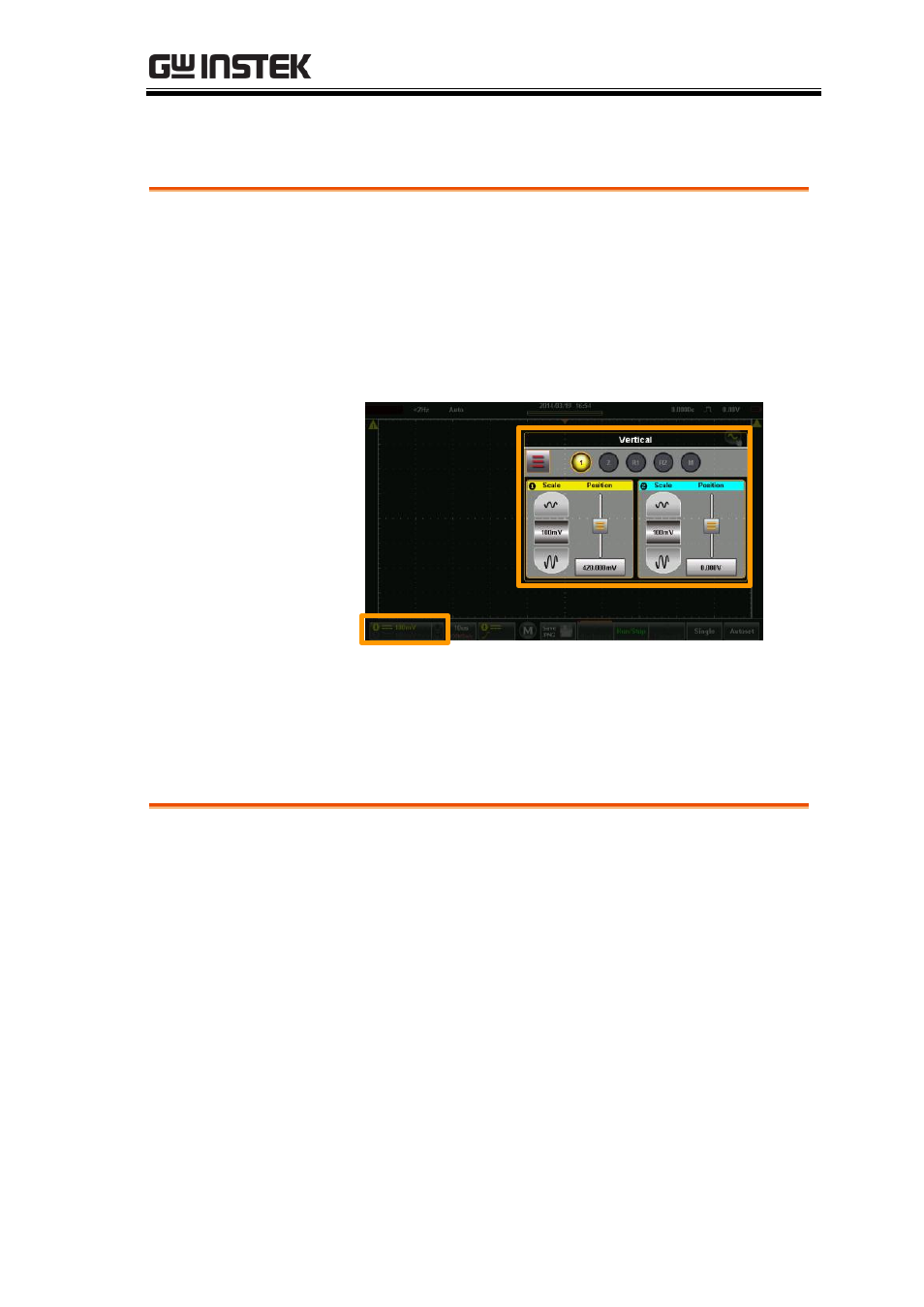

Entering the Vertical Menu
Steps 1. Press the vertical icon to bring up the vertical
menu.
2. The Vertical Menu appears.
Vertical Menu
Vertical icon
Channel or Reference/Math Waveform Selection and
Activation
Turning a
Channel On From the vertical menu press the icon of the
desired channel, reference waveform or math
waveform to turn the channel on or to select the
channel as the active channel.
 When activated the channel icon will be
colored.
 The active channel will have an orange
ring around the channel icon.
 Channels that are turned off will be
grayed-out.
