OPERATION
83
Cursor Measurements
Horizontal or vertical cursors are used to show the position and
values of waveform measurements and math operation results.
These results cover voltage, time, frequency and other math
operations. When the cursors (horizontal or combined) are
activated, they will be shown on the main display unless turned off.
Using Cursors
Background The Gesture Control icon is used to toggle the
touch screen controls between Waveform
controls and Cursor controls. The Cursor
Display must be activated to use and see the
cursor measurements.
Steps

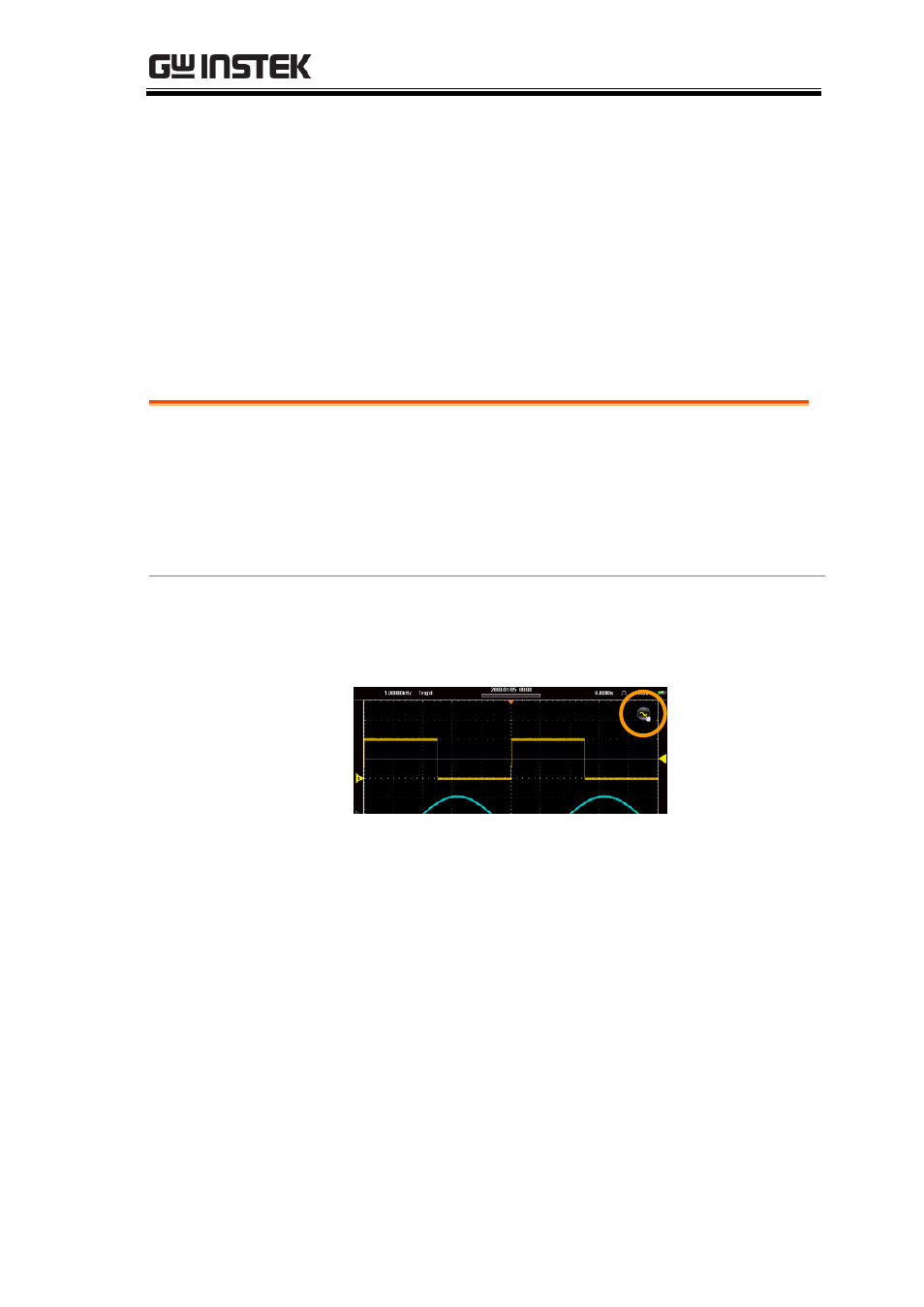

1. Press the Gesture Control icon, located in the
top corner of the graticule.
Gesture
Control
2. Set the Gesture Control to Horizontal or
Combined Cursor control.
3. Turn Cursor Display on.
