OPERATION

155

Attenuation Calculator

Background

The attenuation calculator calculates the
resistor values of 5 common attenuator circuits.
The only input required is the attenuation
required (dB), the system impedance (Z

0

) and

the resistor accuracy (Standard E6 - E192).

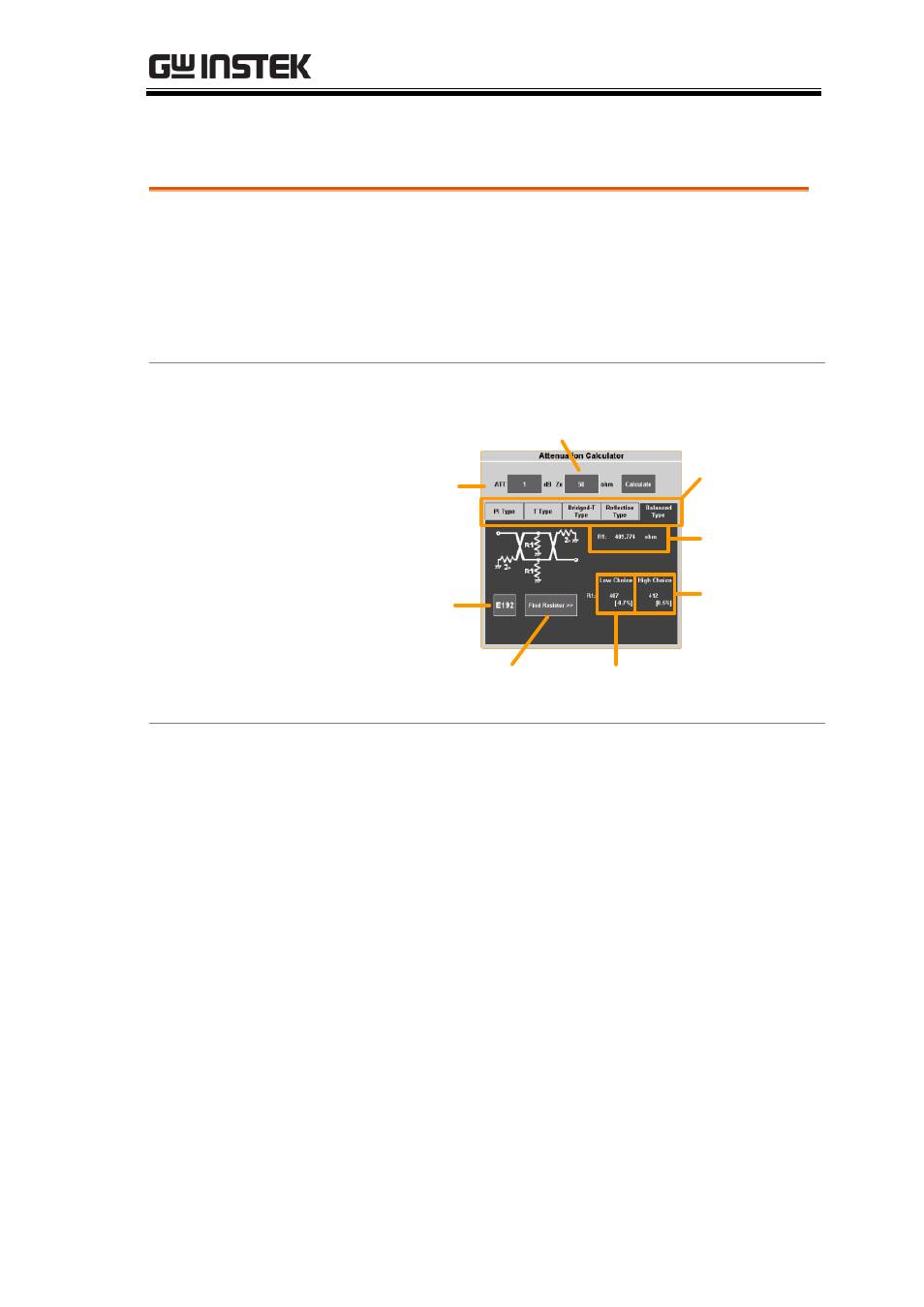

Example

Resistor

standard

Desired

attenuation

Attenuator

type

System

impedance Z

0

Low choice

Ideal

resistance

High choice

Find Resistor key

Steps

1. From the EE Apps tray select the Attenuation

Calculator icon.

2. In the ATT field enter the attenuation required

in dB.

3. In the Z

0

field input the system impedance in

ohms. This value is typically 50Ω.

4. Select the type of attenuator circuit.

Circuit:

Pi Type, T Type, Bridged-T Type,
Reflection Type, Balanced Type
