Menu Control 1. Use the scale picker to set the horizontal scale
for the zoom window.
2. Use the position slider to set the horizontal
position for the zoom window.
3. To set the zoom position to 0, drag from the
Zoom Position key and drop to the “Set to 0”
option.
4. To manually set the zoom position, drag from
the Zoom Position key and drop to the
keyboard icon. Type in the value for the zoom
position with the keypad that appears.
Scale
picker
Position
slider

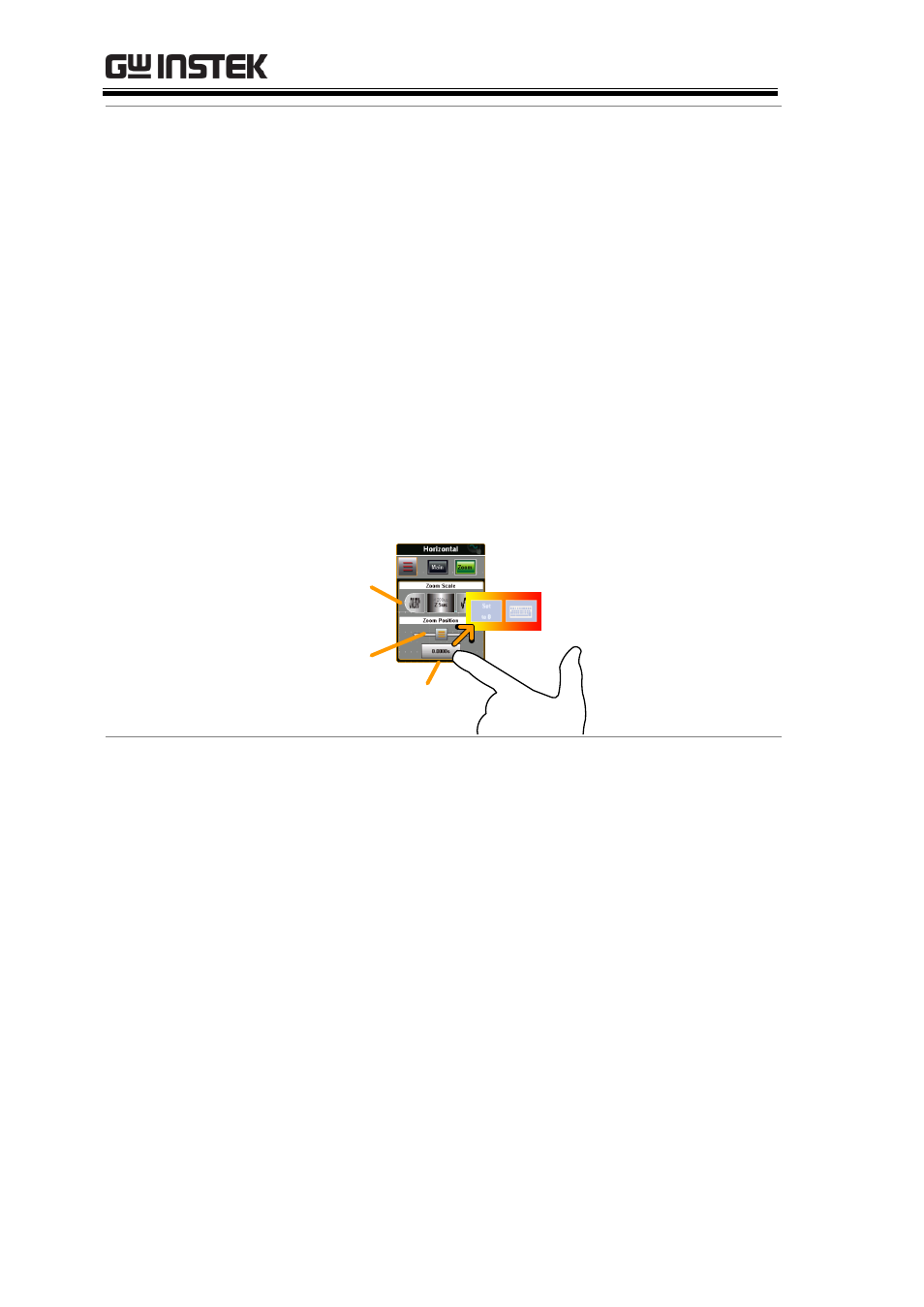

Drag and drop the
Zoom Position
key to manually
set the zoom
position
Zoom
Position key
Touch Control 1. The zoom window can be zoomed in and out
using a horizontal pinch.
