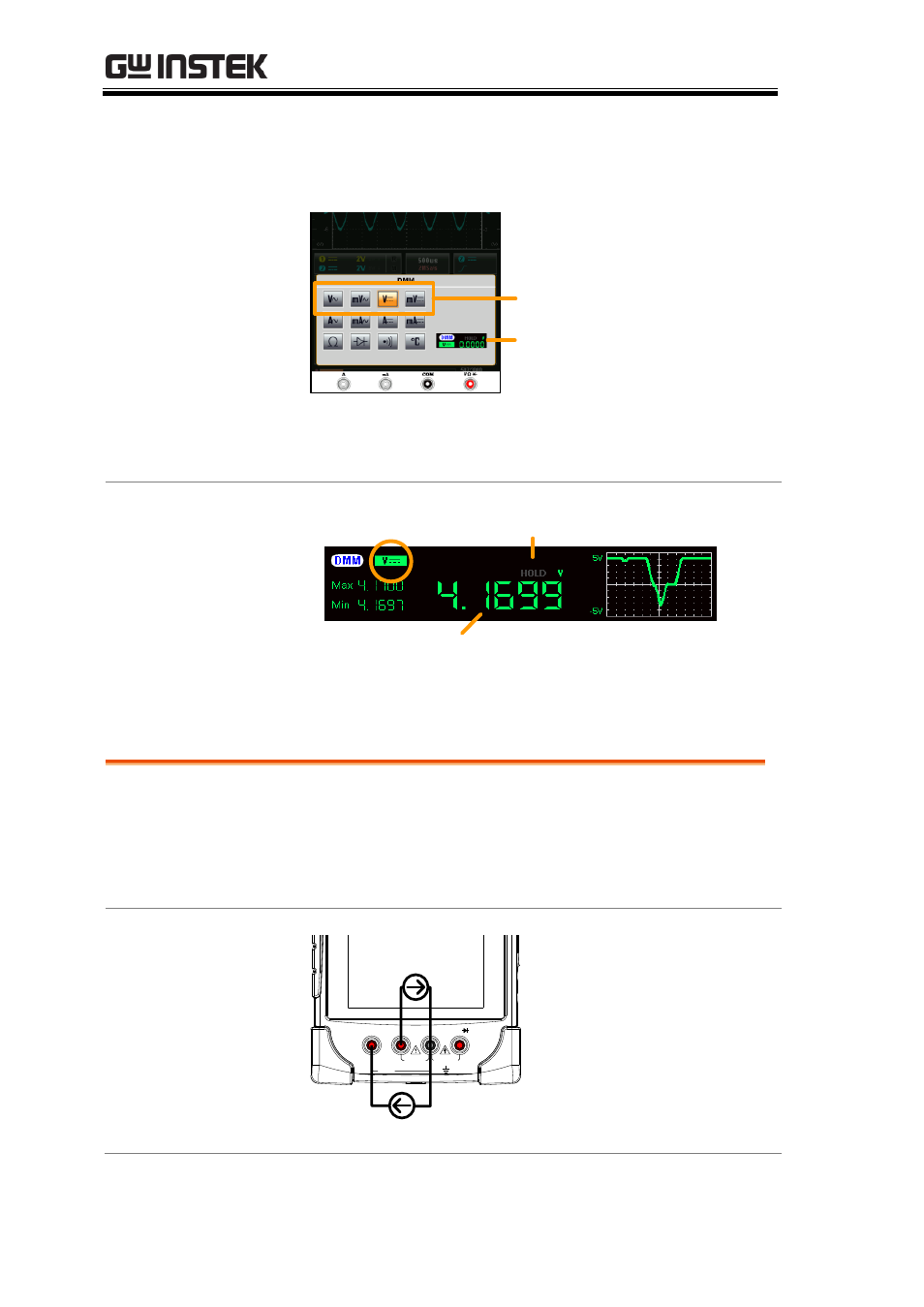

GDS-200 & GDS-300 Series User Manual

146

2. The selected mode will be previewed in the

lower corner.

VAC and VDC keys

Multimeter

settings

Preview screen

3. Press anywhere outside of the multimeter

settings area to return to the main display.

Example

Voltage measurement

DMM mode

Max

Min

Hold on/off

Trend plot

(vertical view only)

Current Measurement

Back Ground

The GDS-200/300 can measure AC and DC
current from two input terminals, depending
on the current range. There is a 10A input for
I≤10A, and a mA terminal for I≤600mA.

Connection

10A MAX

FUSED

V

W

COM

A

mA

GDS-220

Digital Storage Oscilloscope

200 MHz 1GSa/s

Max 10A

Max 600mA

A

COM

mA

COM

CAT II

600V

CAT III

300V

FUSED

600mA MAX
