GDS-200 & GDS-300 Series User Manual

88

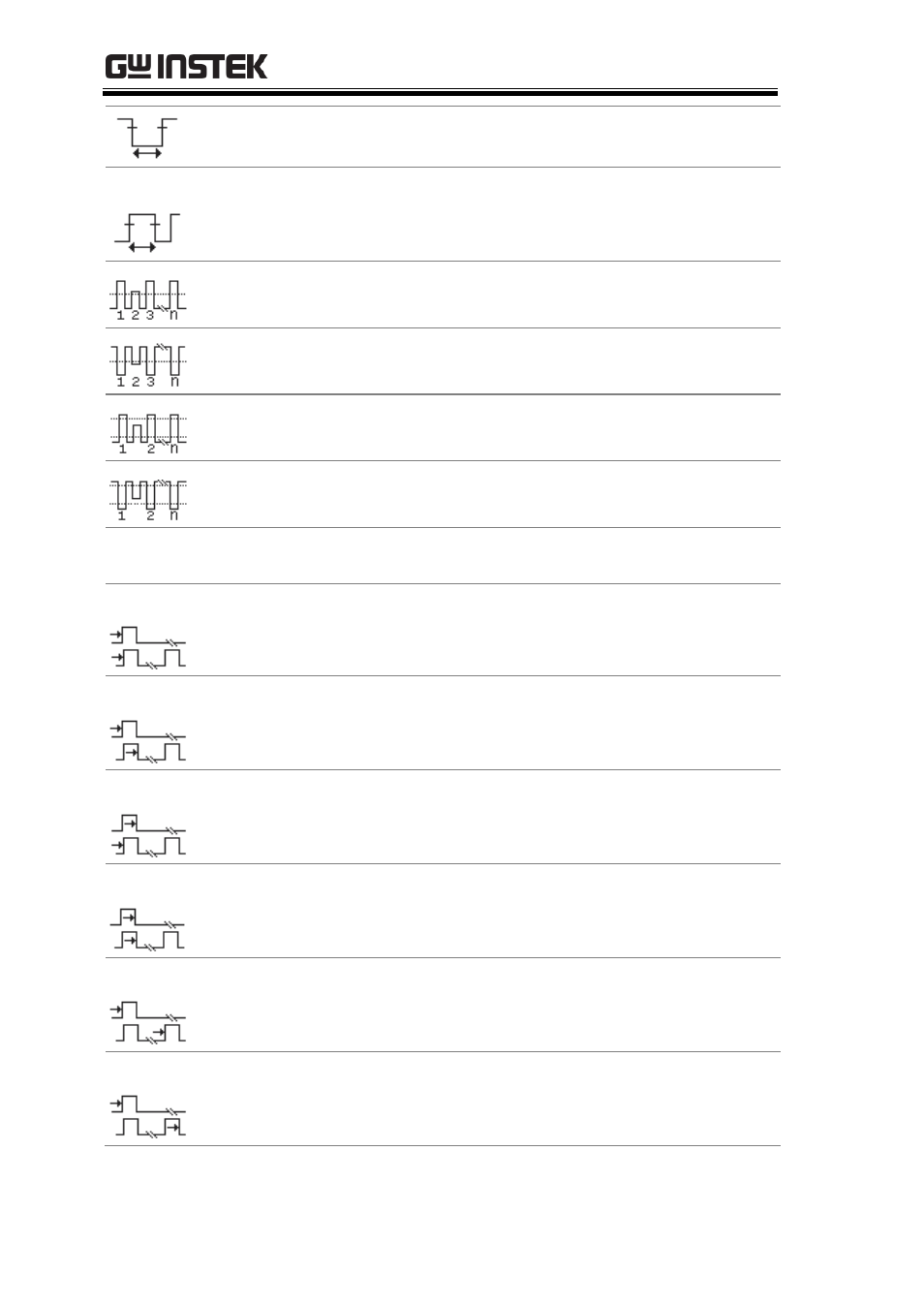

–Width

Negative pulse width.

Duty Cycle

Ratio of signal pulse compared
with whole cycle. =100x (Pulse
Width/Cycle)

+Pulses

Measures the number of positive
pulses.

-Pulses

Measures the number of negative
pulses.

+Edges

Measures the number of positive
edges.

-Edges

Measures the number of negative
edges.

Delay Measurement

FRR

Time between:

Source 1 first rising edge and
Source 2 first rising edge.

FRF

Time between:
Source 1 first rising edge and
Source 2 first falling edge.

FFR

Time between:
Source 1 first falling edge and
Source 2 first rising edge.

FFF

Time between:
Source 1 first falling edge and
Source 2 first falling edge.

LRR

Time between:
Source 1 first rising edge and
Source 2 last rising edge.

LRF

Time between:
Source 1 first rising edge and
Source 2 last falling edge.
