GDS-200 & GDS-300 Series User Manual

52

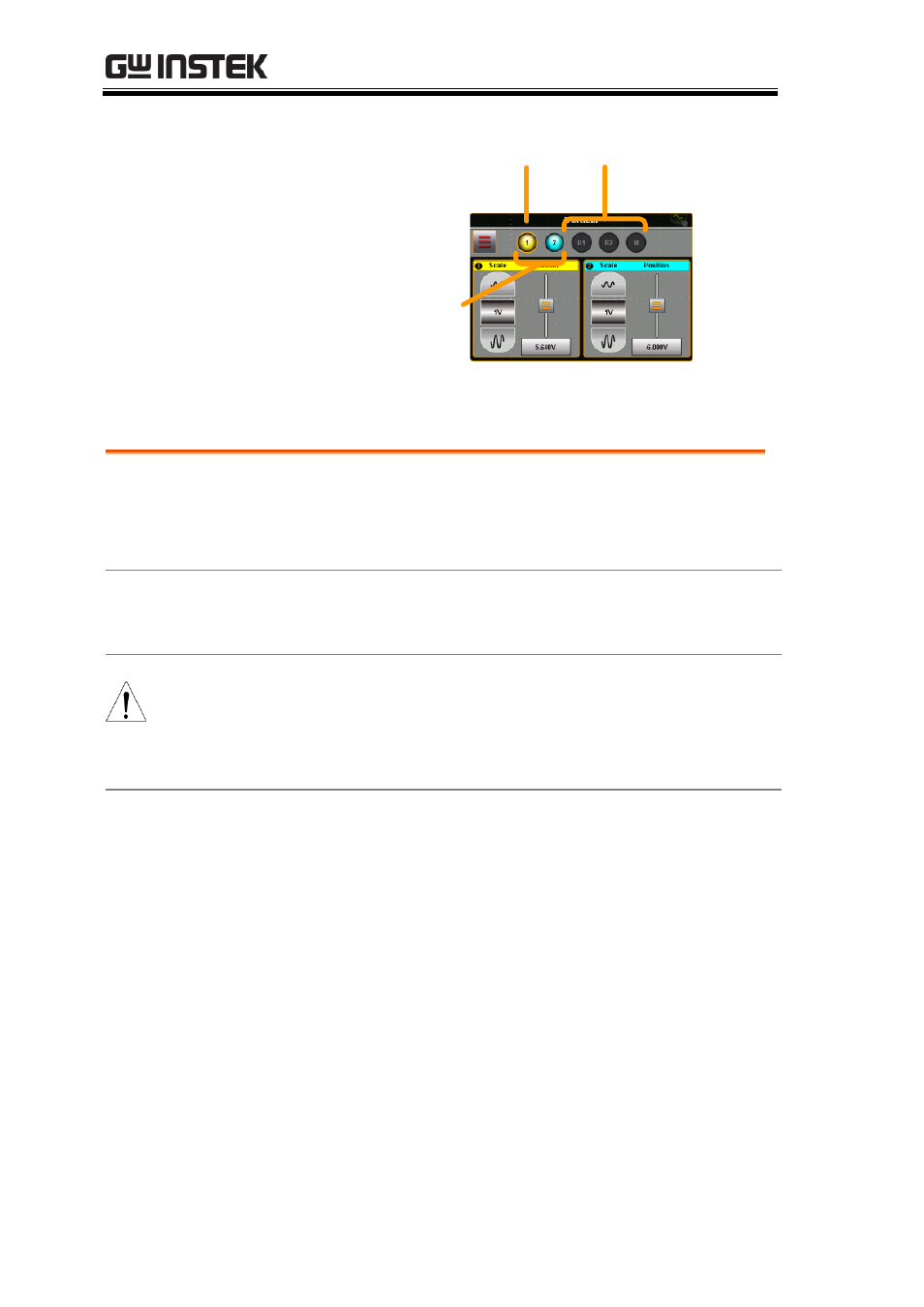

Example

Activated

channels

Selected/active channel

Disabled channels

Vertical Scale and Position

Background

The vertical scale and position can be
configured in the vertical menu in addition to
the using the touch gestures.

Touch Control

Select the desired channel, reference
waveform or math function.

Page 41

Note

Position: When using touch control, the waveform
will automatically snap to the zero position at each
crossing. To move past the zero position, use the
swipe gesture again.

Menu Control

1. Use the scale picker to set the vertical scale for

the selected channel.

2. Use the position slider to set the vertical

position for the selected channel.

3. To set the vertical position to 0, drag from the

Vertical Position key and drop to the “Set to 0”
option.

4. To manually set the vertical position, drag from

the Vertical Position key and drop to the
keyboard icon. Type in the value for the vertical
position with the keypad that appears.
