OPERATION

133

Saving and Configuring Images, Waveforms and Setups All
at Once

Background

Images, Waveforms and Setup files can all be
saved at the same time into a directory at the
same time using the All option.

All File Contents

All the files are saved, by default, to a directory
named AXXXX, where XXXX is a number that
is incremented each time a save operation is
performed.


Image file

AXXCH1/2.LSF

Waveform save file

DSXXXX.SET

Setup up file

Save All

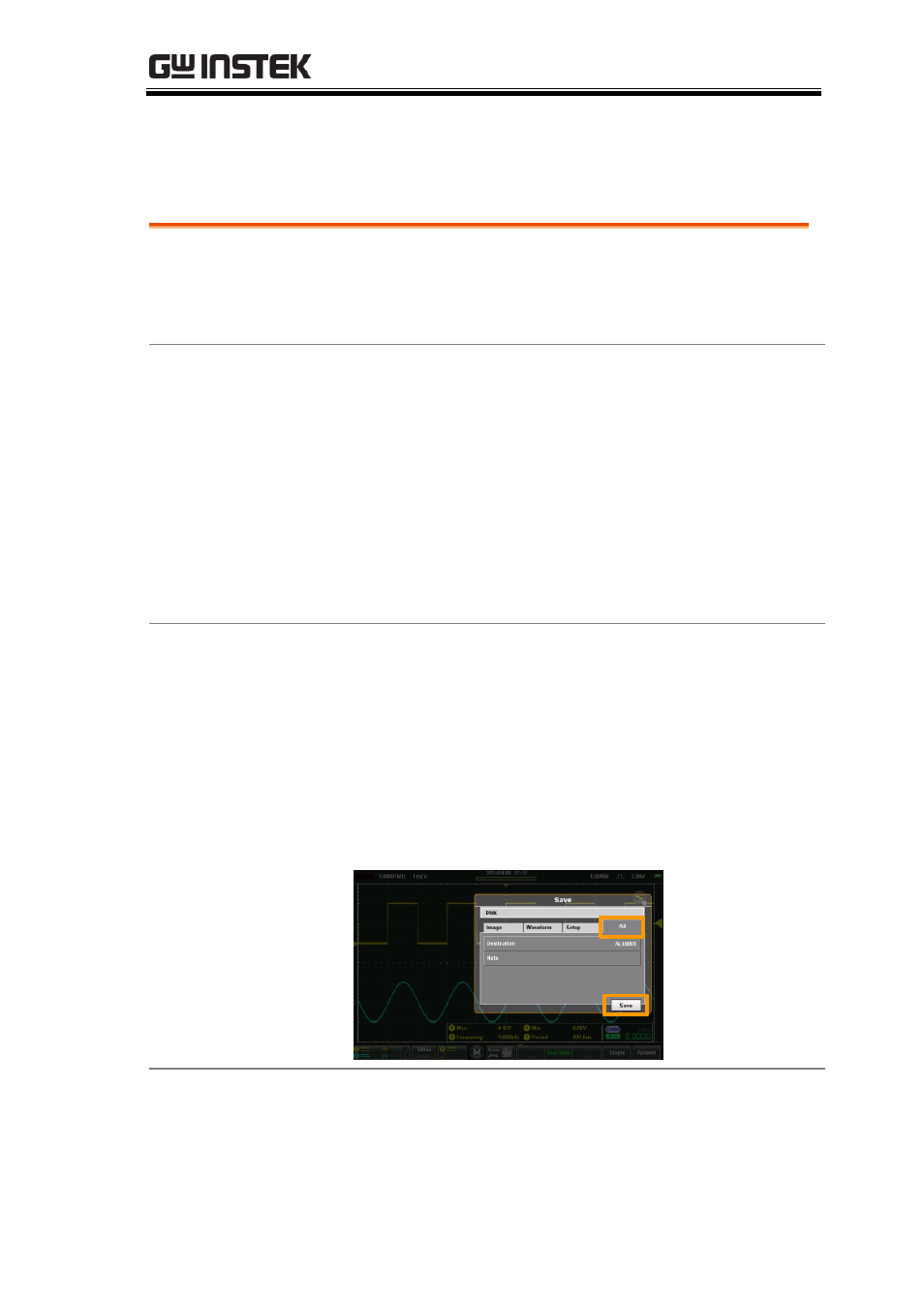

1. From the Save menu, press the All tab.

2. To save, press the Save button at the bottom of

the All tab.

An image file, setup file and waveform files
will be saved into the configured destination.
See below for the configuration details.

All

tab

Save

button

Destination

3. Press Destination to set the destination:
