OPERATION
45
Set the Horizontal Scale
Background The touch screen can be used to conveniently set
the horizontal scale of the displayed waveforms.
To set other horizontal scale options, see page 60.
Steps Pinch in/out horizontally to set the horizontal
scale of the display.
A scale indicator will popup to show the current
scale in relation to full horizontal scale range.
When the scale indicator appears, simply tapping
the left or right-half of the screen will also change
the horizontal scale.
The horizontal scale (as a value) is shown in the
bottom left-hand side of the display.

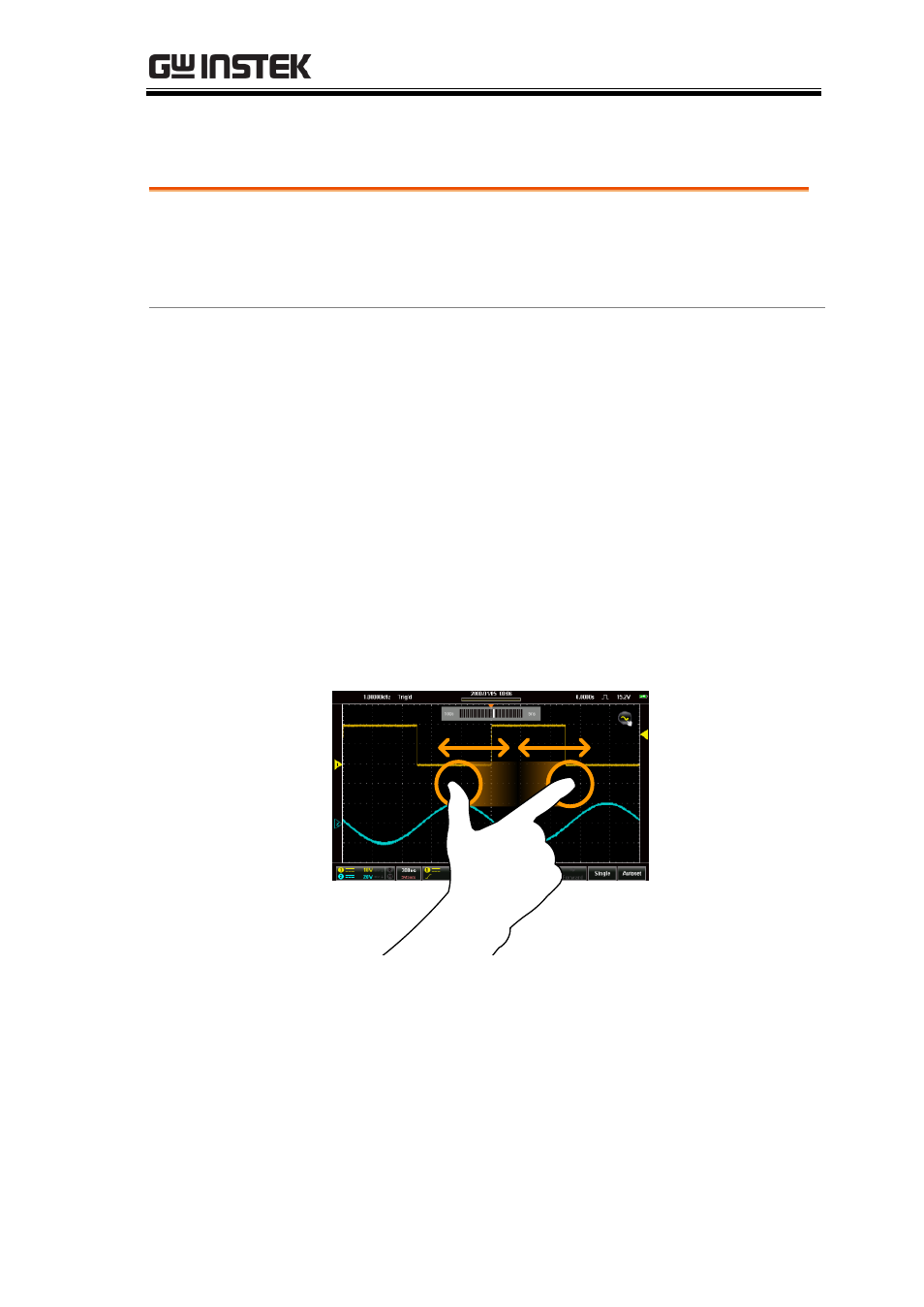

Example
Horizontal
indicator
Horizontal
Scale
