Micromod MOD: Modcell 2050R Users Guide User Manual
Page 31
IB-23C650
INSTALLATION
DIGITAL OUTPUT

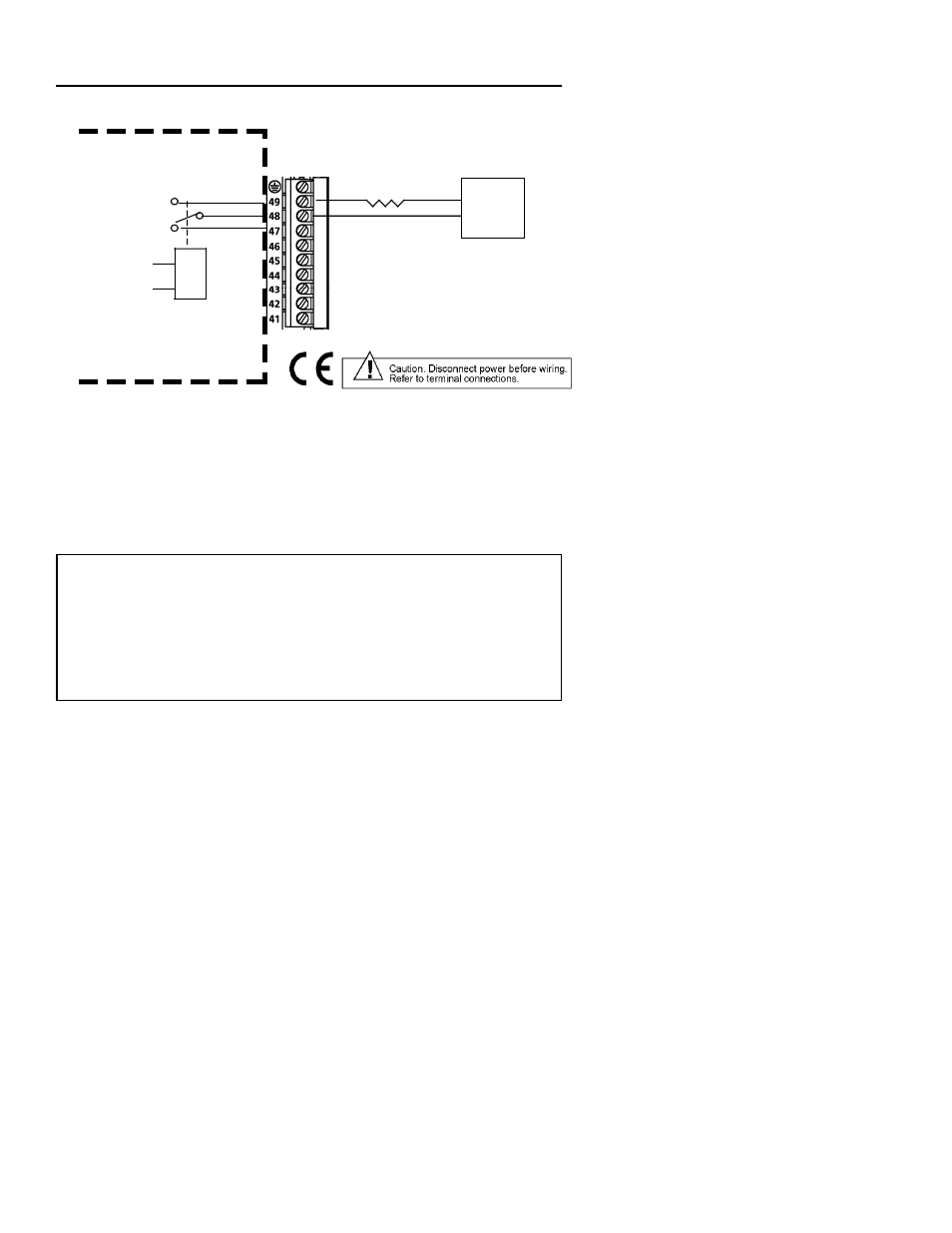

Figure 13. Digital Output Connections
+
–
Output
Load
External
Power
Supply
CONTROLLER
NO
NC
Note:
Connections shown are for Relay A. See Figure 2 for identification of
terminals for relays B and C.
Wire rating: 600V, -20°C +105°C UL, CSA approved
Digital Output specifications are:
Relay Type: SPDT (NO, NC, C)
Number of Relays: 3 (up to 2 can be used for control)
Contact Rating:
150 V ac maximum
at 120V ac, resistive: 5A
at 30V dc, resistive: 5A
Response time: 0.25 Seconds
25
