BASIC OPERATION

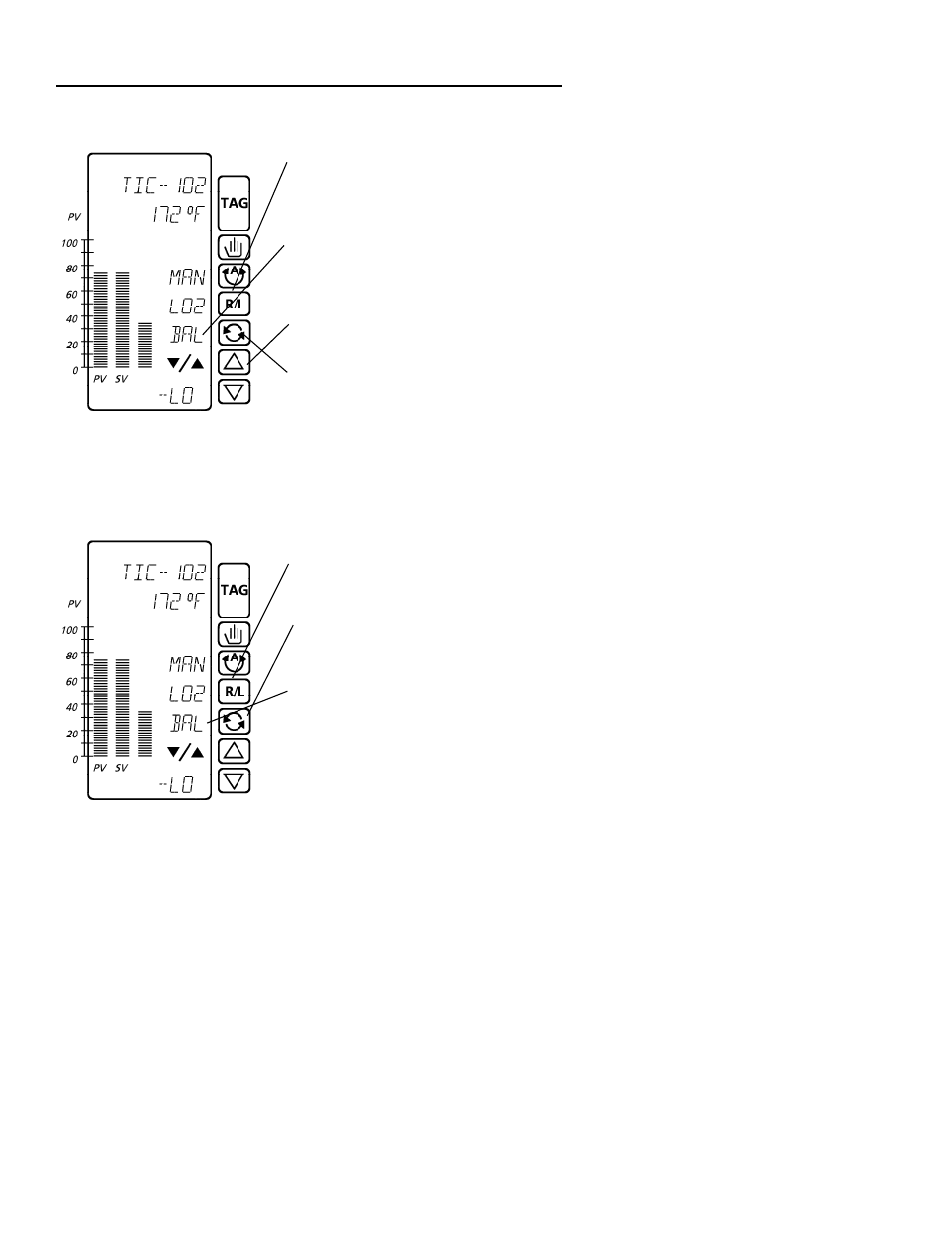

Use the following steps to prepare to switch from a local to a remote set-point:
1) Press the R/L key until [REM] is
displayed in the middle status display.
2) [BAL] appears in the third status
display with the difference between the
remote set-point and the current set-
point displayed in the lower engineering
display.
3) Press the UP or DN key until the
lower engineering display reaches “0.“
4) Press scroll to enact the remote
source as the new set-point source.
Use the following steps to switch from a remote set-point source to one of the
four local set-points. The balance procedure is bypassed because the remote
set-point can only be adjusted at the remote source (this will not be a
bumpless set-point transfer).
1) Press the R/L key until the desired
set-point source is displayed in the
middle status display.
2) Press scroll to enact the new set-
point. The middle status display
indicates the set-point source (LOC,
LO2, LO3, LO4) .
3) The third status display will indicate
SPT with the current set-point value in
the lower engineering display.
The controller is now operating on a
local set-point.
