IB-23C650

INSTALLATION

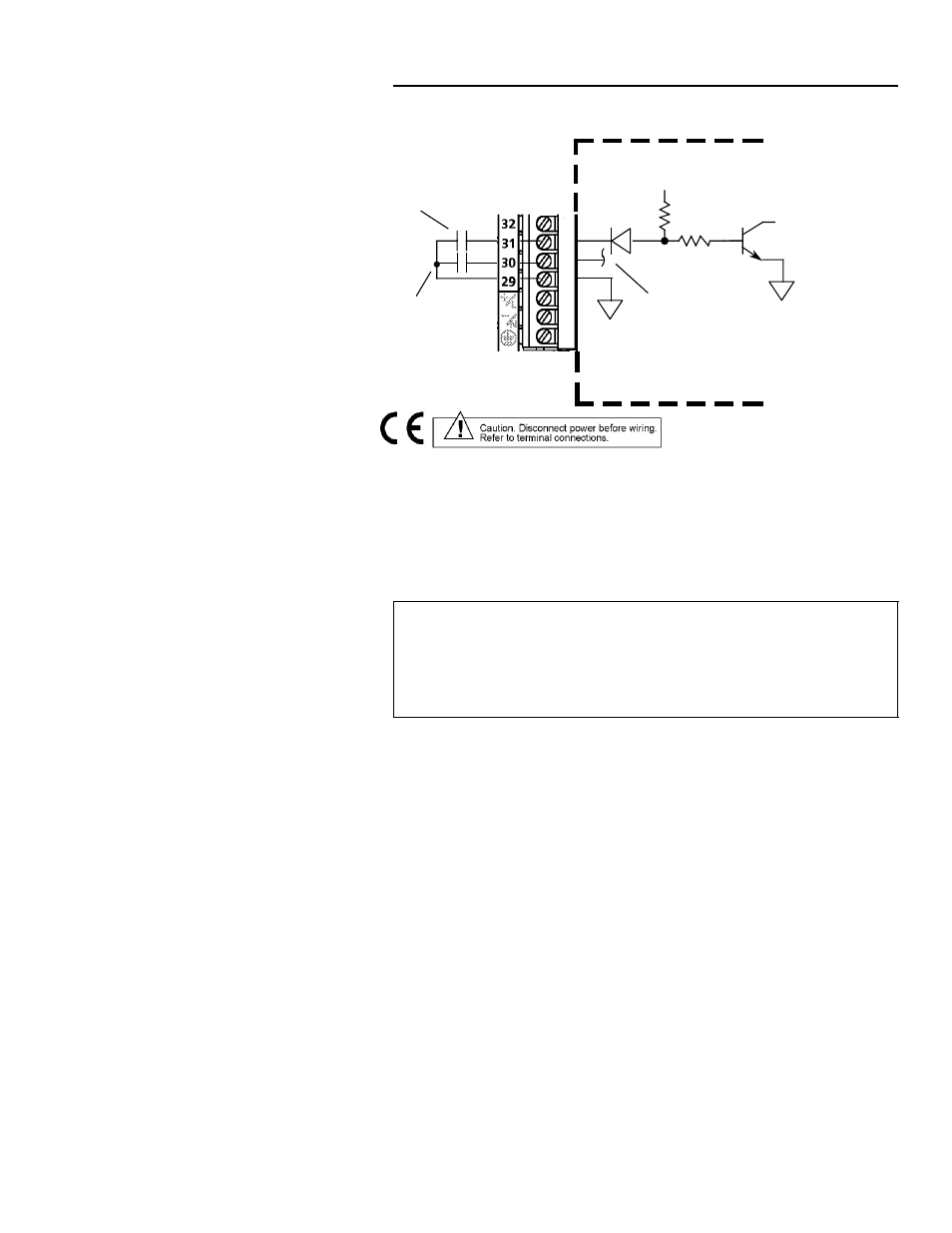

Figure 9. Digital Input Connections

1.2K

To Micro-

processor

4.5K

Same as

#31

Note: External device

sinks current.

CONTROLLER

+5V

DIGITAL INPUT

Digital Input 2

Digital Input 1

NOTE:

Circuit common is disconnected from terminal #29 on instruments
built for EU EMC compliance (electrical code 12). The common
return for these instruments must be connected to one of the other
common terminals, #2 or #9.

Digital input specifications are:

Input Type: Dry contact or dc voltage inputs

Open: 50K ohms minimum or 4-24V dc

Closed: 50 ohms maximum or <1.5V dc

Sample Time: 0.25 Seconds

Contact Source: 3.7 mA @ 0 Volts, Typical
