Micromod MOD: Modcell 2050R Users Guide User Manual
Page 29
IB-23C650
INSTALLATION
MILLIAMPERE OUTPUT

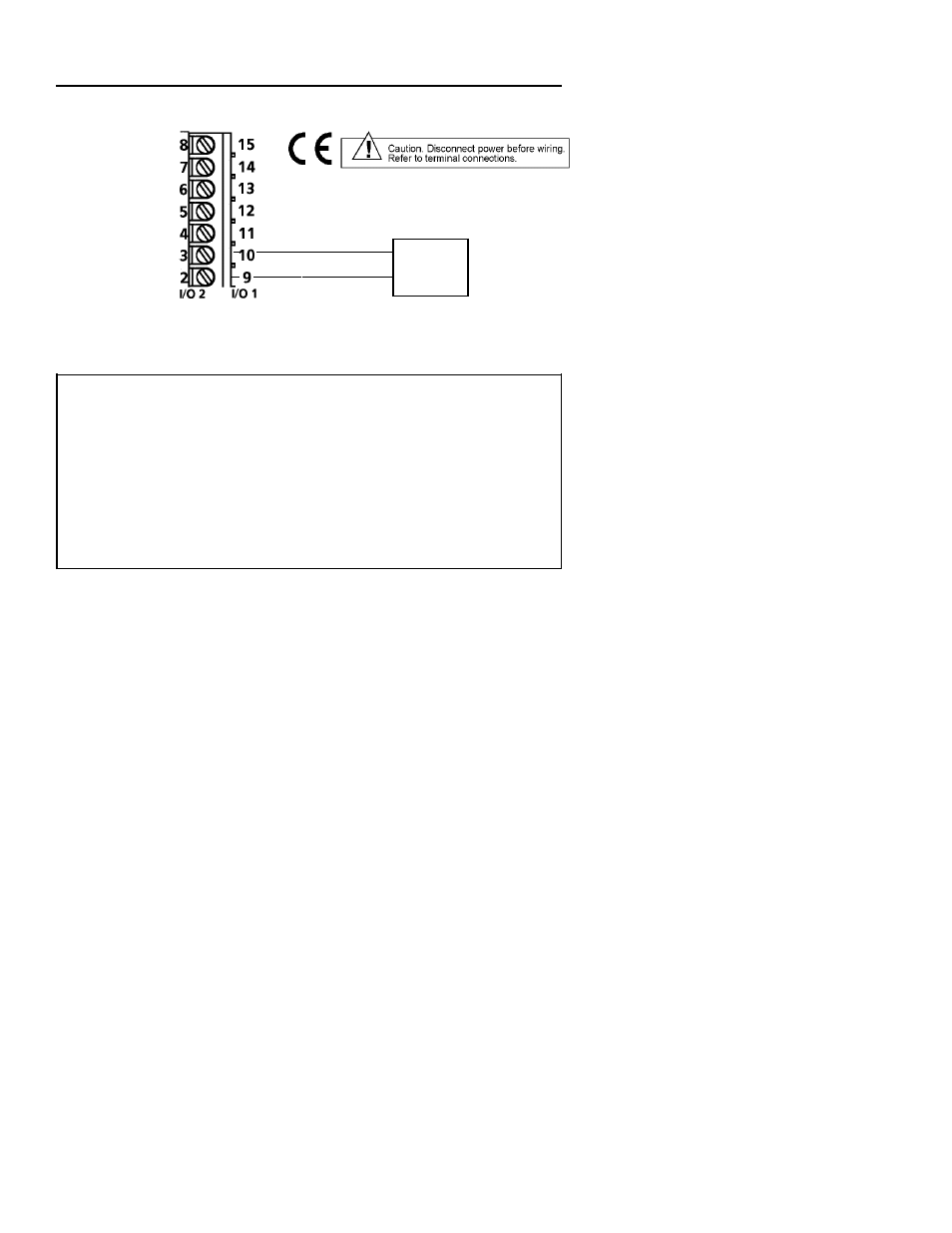

Figure 11. Milliampere Output Connections
–
+
Output
Load
Milliampere Output specifications are:
Range: 0 to 54 mA maximum, non-isolated
Resolution: 14 microamps, 0.09% of a typical 16 milliamp span
Accuracy: ±0.2% of of setting
Temperature Effect: 0.01% per degree C
Load Resistance:
at 22 mA: 1000 ohms maximum
at 54 mA: 400 ohms maximum
Open Circuit Voltage: 25.5 volts typical
Ripple: 20 millivolts peak to peak at 100K Hz typical
