IB-23C650
BASIC OPERATION

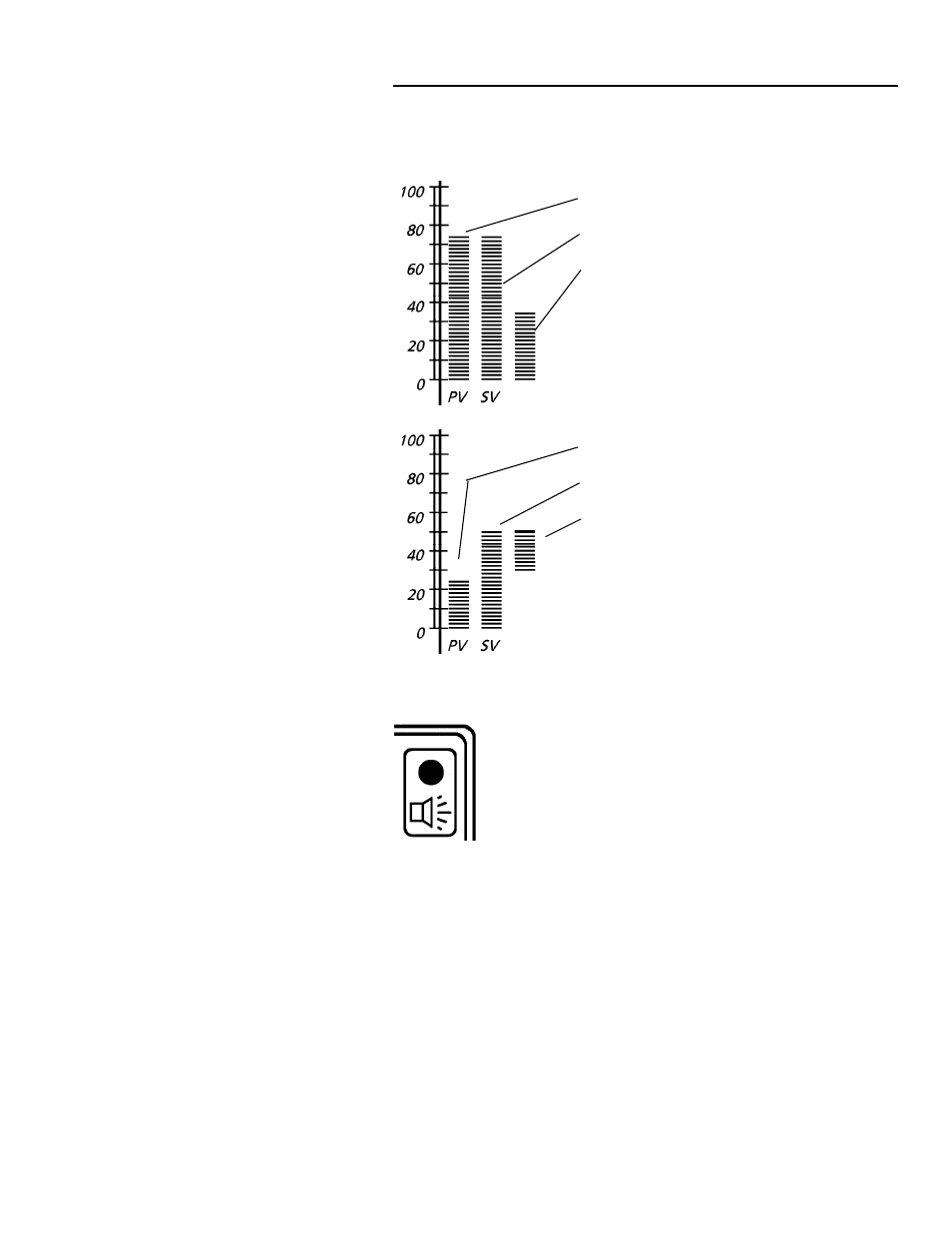

BAR GRAPHS
Three 50-segment bar graphs provide visual indication of process, set-point
and either output or deviation.
Process Variable
Set-Point Variable
Output
Process Variable
Set-Point Variable
Deviation (as set up in the Inputs Menu)
Deviation bar shows a minimum of two
highlighted lines (both highlighted when
deviation is zero). Deviation is shown
above or below these lines.
ALARM INDICATOR
The alarm indicator is located in the upper right hand corner of
the instrument front face. This LED indicator may be
continuously on or flashing, depending on alarm activity.
130
