BASIC OPERATION

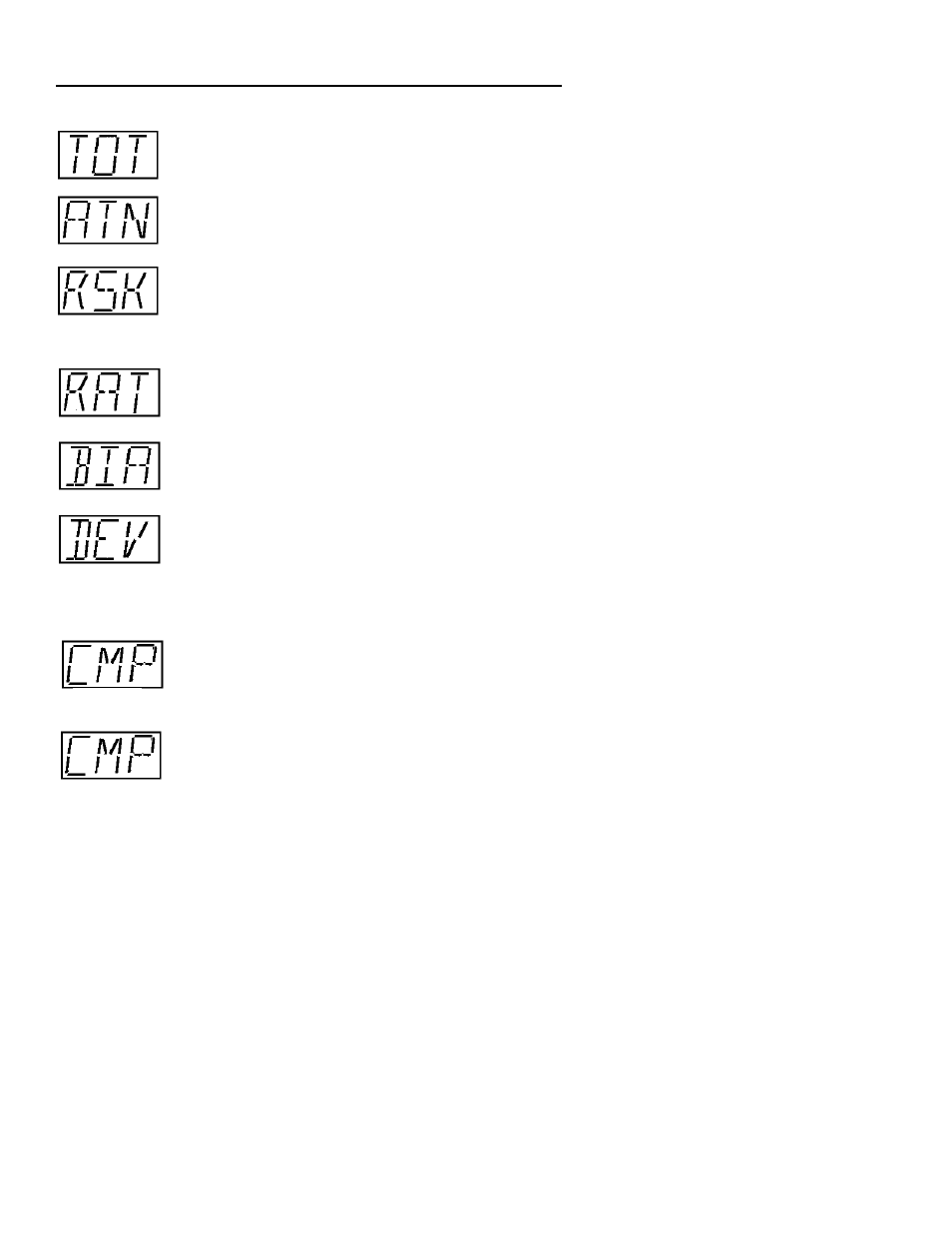

Totalize: The totalized count is being displayed in the
lower engineering display. See operation of
Totalizer.
Autotune: Autotune has been enabled in the BASE CNFG
MENU. At this display’s menu prompt, pressing
the
UP key will initiate the Autotune routine.
Ramp/ Ramp/soak has been enabled in the BASE
Soak: CFG MENU. Pressing the UP key provides
ramp/soak status such as run/hold, time left per
segment, active segment, cycle, reset and skip.
See operation of Ramp/Soak.
Ratio: Ratio or ratio/bias has been enabled in the
BASE CFG MENU, and the ratio value is being
displayed in the lower engineering display.
Bias: Bias or ratio/bias has been enabled in the BASE
CFG MENU, and the bias value is being
displayed in the lower engineering display.
Deviation: Deviation has been selected as the Right Bar
Displayed Variable in the INPUTS MENU, and
the deviation value is being displayed in the
lower engineering display.
BOTTOM, TOP or MIDDLE DISPLAY
Computer: Display appears in bottom location when
RS-485 is enabled in BASE CFG MENU.
Pressing
UP toggles computer status between
LOCKED and ENABLED. Display can also
appear in top location (indicating computer
control status), and middle location (indicating
computer setpoint status) when computer is
active the mnemonic in each location is
configurable; CMP is default.
Bottom
Top & Middle
